Camshaft Position (CMP) Sensor: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

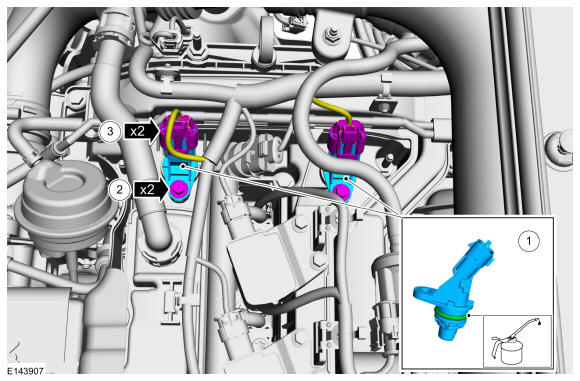

To install, reverse the removal procedure.
- Apply engine oil to the sensor o-ring.
  Material

  : Engine Oil - SAE 0W-20 - Synthetic Blend Motor Oil / XO-0W20-Q1SP (WSS-M2C947-B1)
- Install CMP sensors and retainers.
  Torque

  : 89 lb.in (10 Nm)
- Connect the CMP sensor electrical connectors.
