Electronic Engine Controls - Component Location
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

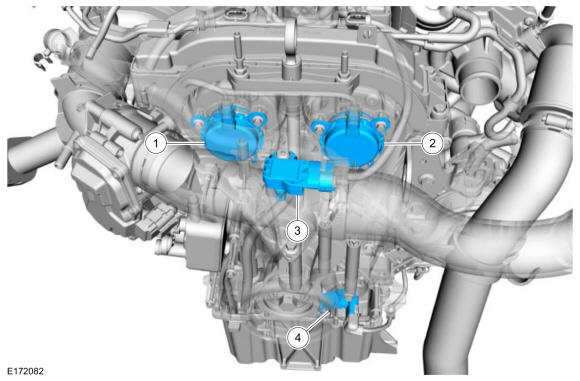

Front of Engine
| Item | Description |
|---|---|
| 1 | VCT oil control solenoid - intake camshaft |
| 2 | VCT oil control solenoid - exhaust camshaft |
| 3 | Turbocharger boost pressure and charge air temperature sensor |
| 4 | CKP sensor |

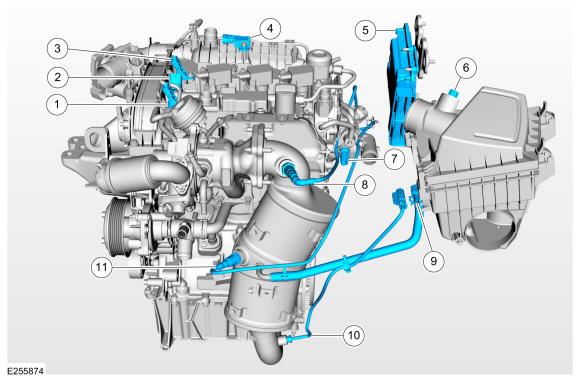

Top of Engine
| Item | Description |
|---|---|
| 1 | CMP sensor - exhaust camshaft |
| 2 | FRP sensor |
| 3 | CMP sensor - intake camshaft |
| 4 | MAPT sensor |
| 5 | PCM |
| 6 | IAT sensor |
| 7 | ECT sensor |
| 8 | HO2S |
| 9 | Exhaust Pressure sensor |
| 10 | Exhaust Gas Temperature sensor |
| 11 | Catalyst Monitor sensor |

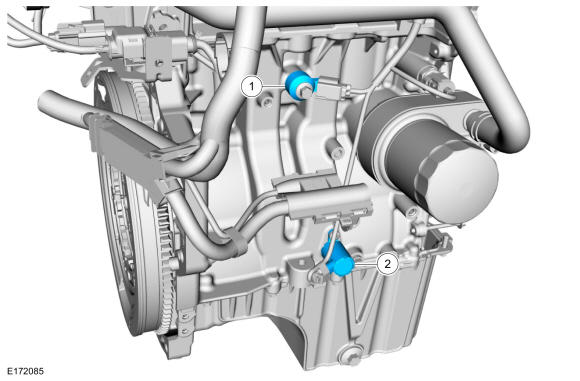

Right Side of Engine
| Item | Description |
|---|---|
| 1 | KS |
| 2 | Oil pressure control solenoid |

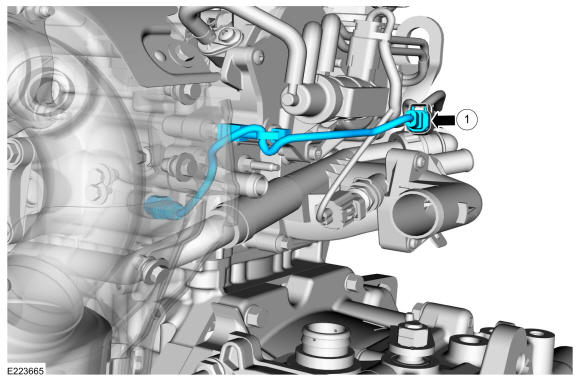

Rear of Engine
| Item | Description |
|---|---|
| 1 | CHT (CHT2) sensor |

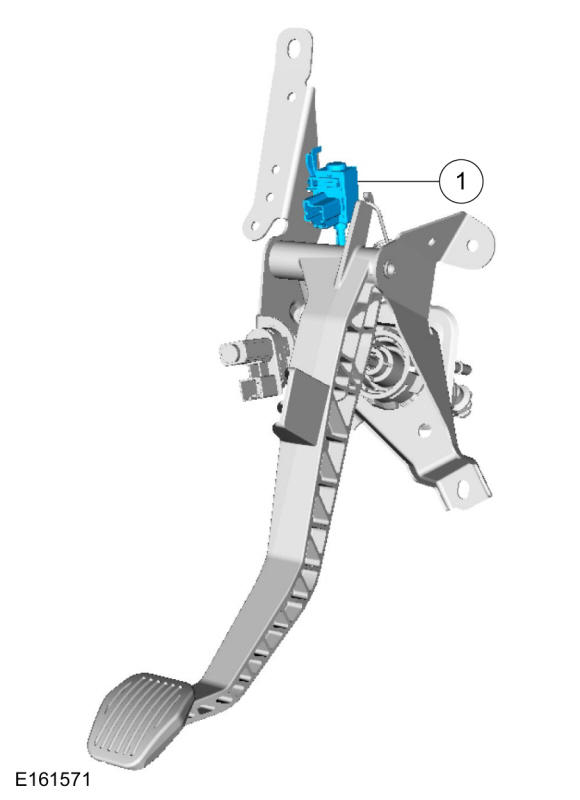

CPP Switch
| Item | Description |
|---|---|
| 1 | CPP switch |
