Rear Parking Aid Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear bumper cover. Refer to: Rear Bumper Cover .
Disconnect the rear parking aid sensor electrical connector(s).

Courtesy of FORD MOTOR COMPANY

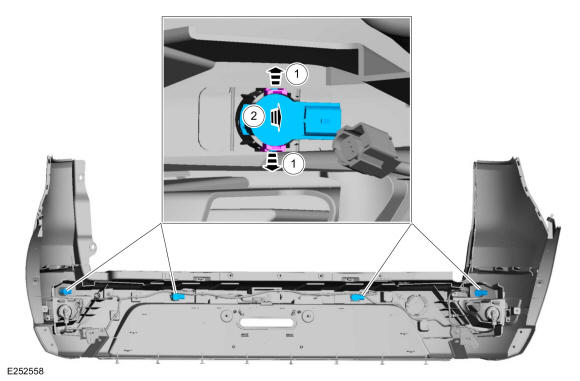

1. Release the tabs.
2. Remove the rear parking aid sensor(s).

Courtesy of FORD MOTOR COMPANY
