Parking Assist Control Module (PAM): Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the PAM following the on-screen instructions.
Remove the LH load compartment trim panel. Refer to: Loadspace Trim Panel .

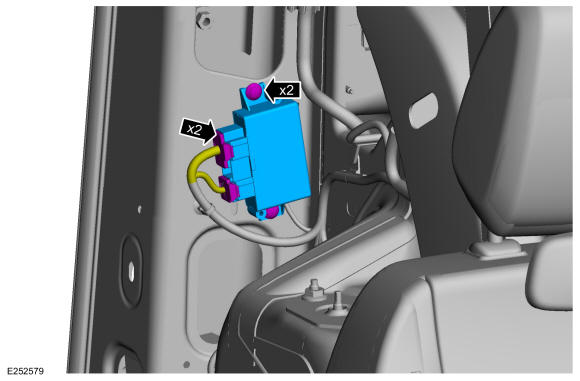

Remove the pin-type retainers, disconnect the electrical connectors and remove the PAM.
