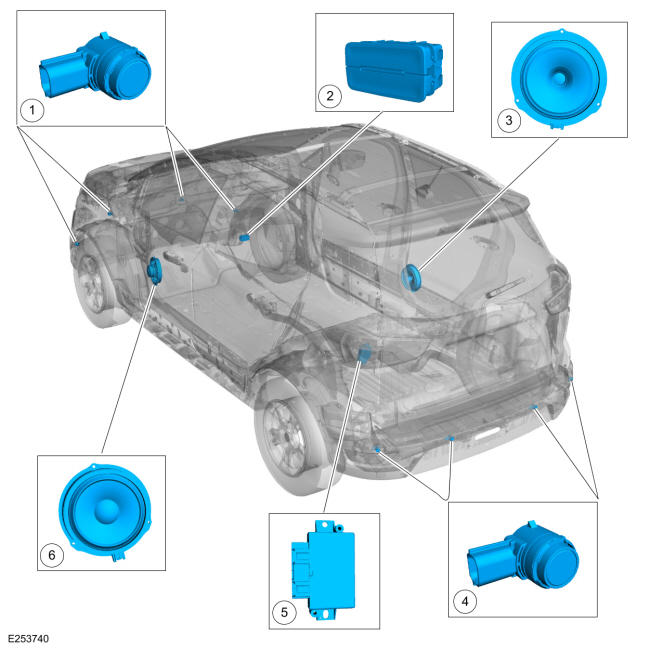

Parking Aid - Component Location
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Parking aid sensors, front (if equipped) |
| 2 |
Parking aid disable switch |
| 3 |
Rear door speakers (only left speaker shown, part of audio system) |
| 4 |
Parking aid sensors, rear |
| 5 |
PAM |
| 6 |
Front door speaker (only right speaker shown, part of audio system) |
