Receiver Drier Element: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the condenser. Refer to the appropriate procedure. . Refer to: Condenser - 2.0L Duratec-HE (129kW/175PS) .

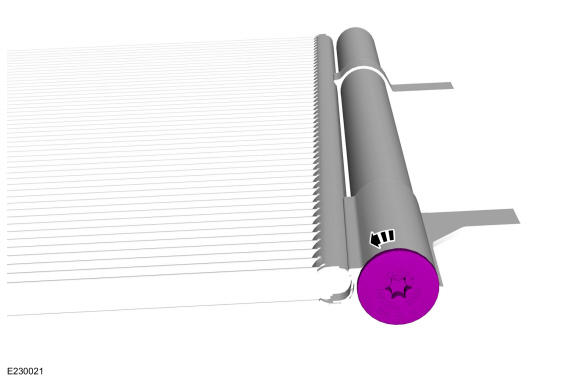

Remove the receiver drier cap.

Courtesy of FORD MOTOR COMPANY

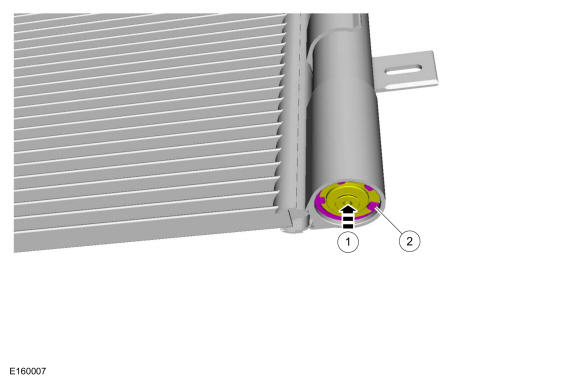

Push the receiver drier plug upwards, remove the receiver drier plug snap ring.

Courtesy of FORD MOTOR COMPANY

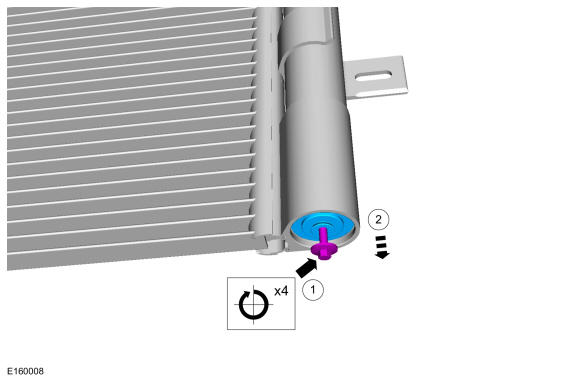

Install an M5 bolt in the center of the receiver drier plug and remove the receiver drier plug.

Courtesy of FORD MOTOR COMPANY

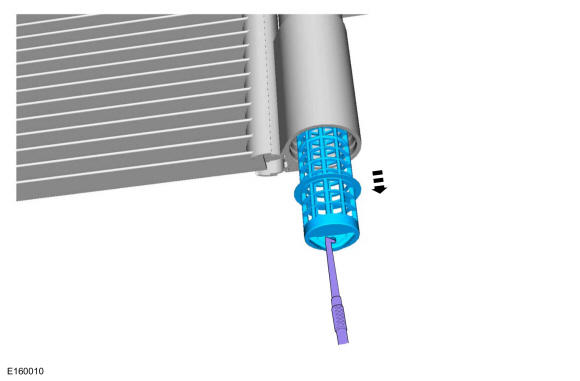

Using a pick tool, remove the receiver drier element.

Courtesy of FORD MOTOR COMPANY
