Passenger Side Register: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

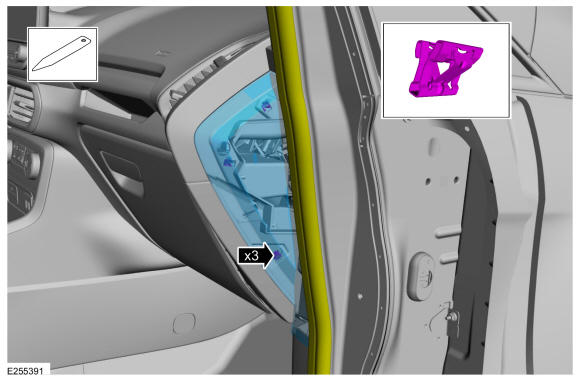

  1. Position the weather strip aside, release the clips and remove the RH instrument panel finish panel. Use the General Equipment: Interior Trim Remover
    GFD328223Courtesy of FORD MOTOR COMPANY

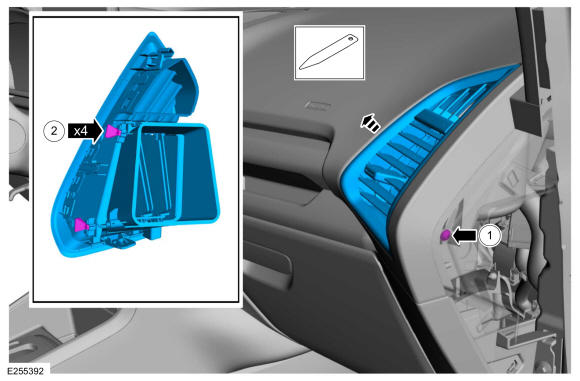

    1. Remove the screw.
    2. Release the clips and remove the passenger side register. Use the General Equipment: Interior Trim Remover
GFD328224Courtesy of FORD MOTOR COMPANY
