Heating, Ventilation and Air Conditioning (HVAC) Control Module: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: When installing a new HVAC control module, the Programmable Module Installation (PMI) procedure must be carried out to configure the new module to the vehicle.

NOTE: This step is only necessary when installing a new component.

Using a diagnostic scan tool, begin the PMI process for the HVAC control module following the on-screen instructions. Refer to: Module Programming .
NOTE: EATC shown, EMTC similar.

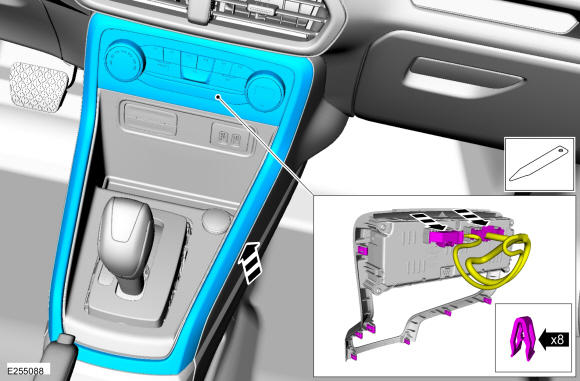

Remove the floor console upper trim panel.
- Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

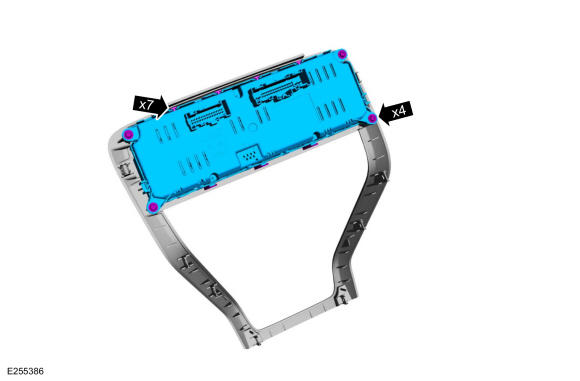

Remove the retainers, release the clips and remove the HVAC control module.

Courtesy of FORD MOTOR COMPANY
