Condenser Outlet Line - 1.0L EcoBoost (92kW 125PS): Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant .
With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped, remove the bolts and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the condenser outlet line nut.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque

  159 lb.in (18 Nm)
Courtesy of FORD MOTOR COMPANY

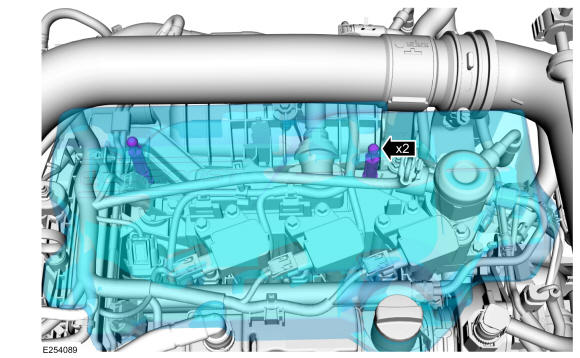

Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

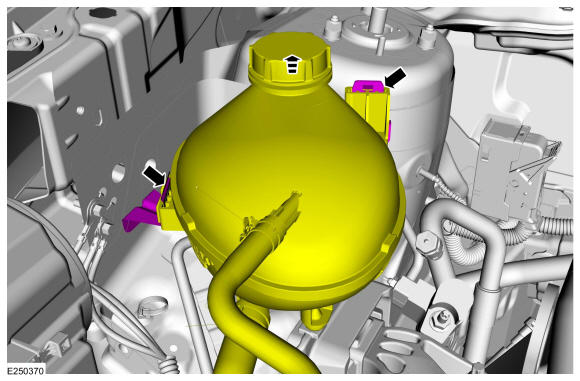

Release the tabs and position the degas bottle aside.

Courtesy of FORD MOTOR COMPANY

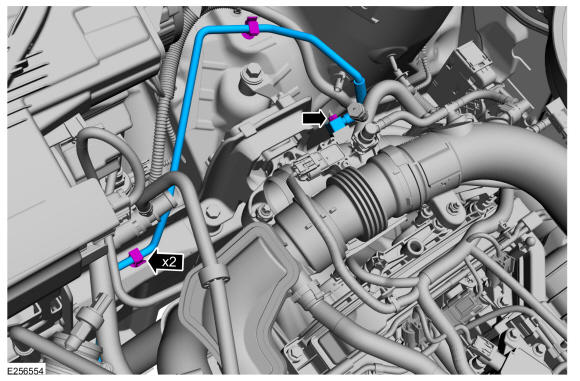

NOTE: Some components removed for clarity.
- Release the condenser outlet line to frame retainers.
- Remove the condenser outlet line nut and remove the condenser outlet line. Make sure to cover any open ports to prevent debris from entering the system.
  Torque

  71 lb.in (8 Nm)
