Condenser - 2.0L Duratec-HE (129kW 175PS): Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the radiator. Refer to: Radiator .

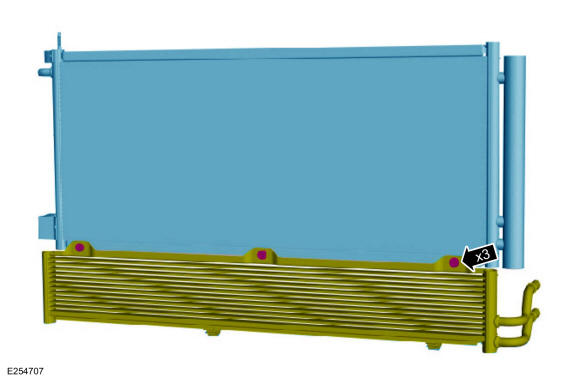

- Remove the bolts and the transmission fluid cooler.
Torque
62 lb.in (7 Nm)
