Climate Control Housing: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the instrument panel upper section. Refer to: Instrument Panel Upper Section .

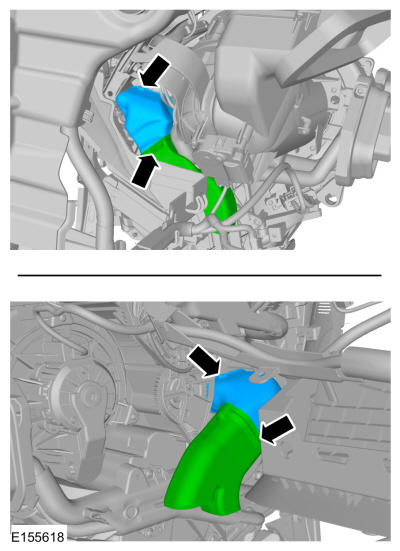

Remove the drivers and passengers footwell ducts.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped

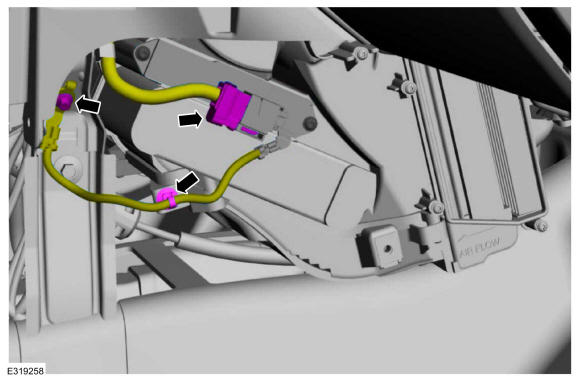

- Disconnect the electrical connector.
- Detach the wire harness retainer and remove the ground bolt.
  Torque

  44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY

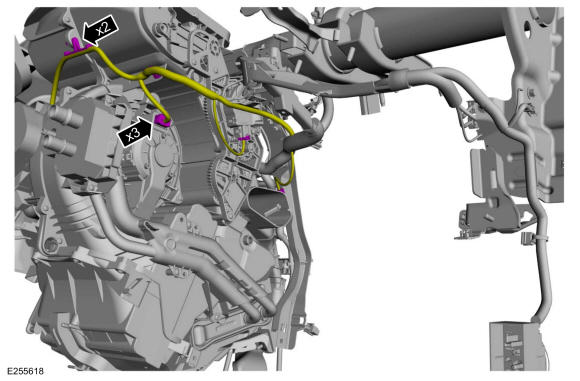

Disconnect the harness retainers and disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

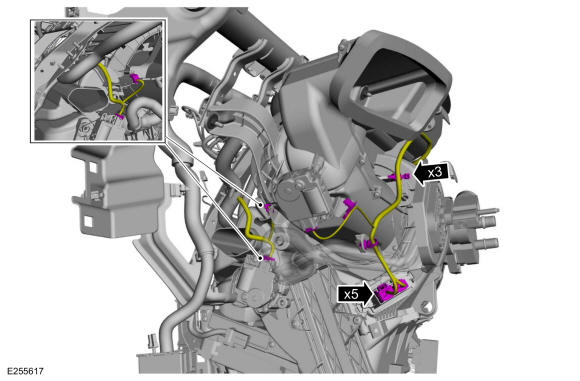

Disconnect the harness retainers and disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

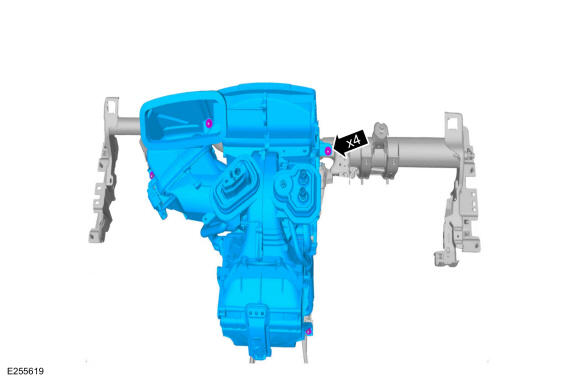

Remove the climate control housing retainers.
Torque

53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
