Cabin Heater Coolant Pump - 2.0L Duratec-HE (129kW 175PS): Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the battery tray. Refer to: Battery Tray .
-

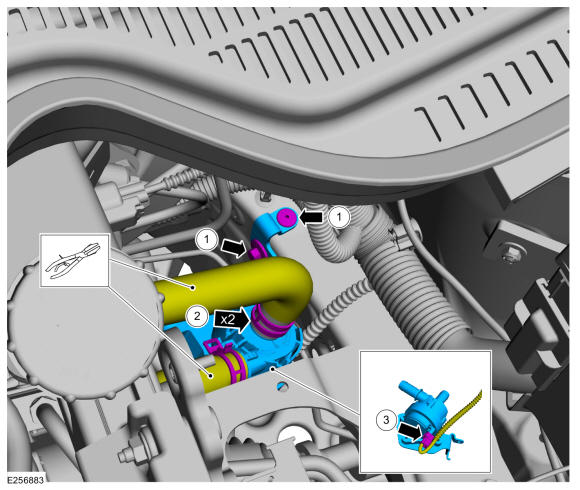

- Remove the bolt and the pushpin.
Torque
62 lb.in (7 Nm)
- Release the clamps and disconnect the heater inlet and outlet hoses. Use the General Equipment: Hose Clamp(s)
- Disconnect the electrical connector and remove the cabin heater coolant pump.
- Remove the bolt and the pushpin.
