Air Conditioning (A/C) Pressure Transducer: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

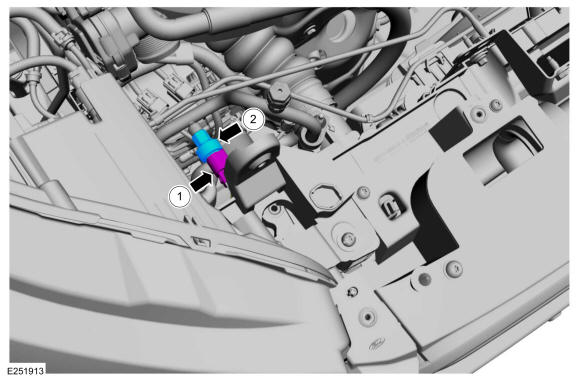

Remove the A/C pressure transducer.
1. Disconnect the electrical connector.
2. Remove the A/C pressure transducer.
  Torque

  71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
