Passenger Door Module (PDM): Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:

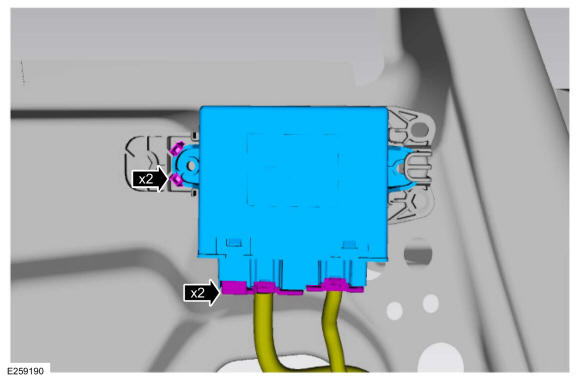

DDM shown in illustration, PDM similar.
-
NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Carry out the PMI procedure for the PDM. Refer to: Module Programming .
- Remove the RH front door trim panel. Refer to: Front Door Trim Panel .
- Release the 2 clips and remove the PDM from the bracket.
- Disconnect the electrical connectors.
