Pinpoint Test P : USB (Universal Serial Bus) Input Concern

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Audio System/Navigation - AM/FM/CD/SYNC for schematic and connector information.

    Normal Operation and Fault Conditions

    DTC Fault Trigger Conditions

    DTC Description Fault Trigger Condition
    APIM B1252:11 USB Port: Circuit Short To Ground Sets in continuous memory and during the on-demand self-test when the APIM detects a short to ground from the USB cable.
    APIM B1252:13 USB Port: Circuit Open Sets during the on-demand self-test when the APIM detects an open from the USB cable.
    APIM B14FD:11 External Media Control Connectivity: Circuit Short To Ground Sets in continuous memory when the APIM detects a short to ground from the media hub power supply circuit.

    Possible Sources

    • USB device
    • Foreign object in the USB port
    • USB cable
    • Media hub
    • APIM

  2. P1 CHECK FOR FOREIGN MATERIAL IN THE USB (UNIVERSAL SERIAL BUS) PORTS

    • Ignition OFF.

    • Remove any devices connected to the USB ports.

    • Inspect the USB ports for foreign material.

    Is any foreign material present in either USB port?

    Yes  REMOVE the foreign material present in the USB port.
    No  GO to  P2

  3. P2 CHECK THE OPERATION FROM BOTH USB (UNIVERSAL SERIAL BUS) PORTS

    • Ignition ON.

    • Remove any devices connected to the USB port.

    • Connect the MIT 105-00120 to one USB port.

    • Using the MIT 105-00120, attempt to play an audio file.

    • Connect the MIT 105-00120 to the other USB port.

    • Using the MIT 105-00120, attempt to play an audio file.

    Is the audio output OK for both USB ports?

    Yes  The system is operating correctly. The concern is with the customer USB device.
    No  If the audio output is inoperative for only one USB port, INSTALL a new media hub. If the audio output is inoperative for both USB ports, GO to  P3

  4. P3 CHECK FOR APIM (SYNC MODULE) DTC (DIAGNOSTIC TROUBLE CODE) B1252:11 AND B14FD:11

    • Using a diagnostic scan tool, carry out the APIM self-test.

    Is DTC B1252:11 or B14FD:11 present?

    Yes  GO to  P4
    No  GO to  P8

  5. P4 ISOLATE THE MEDIA HUB

    • Ignition OFF.

    • Disconnect Media Hub C3512A.

    • Disconnect Media Hub C3512B.

    • Ignition ON.

    • Using a diagnostic scan tool, clear the APIM Diagnostic Trouble Codes (DTCs).

    • Wait 30 seconds.

    • NOTE: DTC B1252:13 may be present when carrying out this step and should be disregarded at this time.

      Using a diagnostic scan tool, carry out the APIM self-test.

    Is DTC B1252:11 or B14FD:11 still present?

    Yes  For DTC B1252:11, GO to  P5 For DTC B14FD:11, GO to  P6
    No  INSTALL a new media hub.

  6. P5 ISOLATE THE USB (UNIVERSAL SERIAL BUS) CABLE FOR A SHORT TO GROUND

    • Ignition OFF.

    • Disconnect APIM C2383B.

    • Ignition ON.

    • Using a diagnostic scan tool, clear the APIM Diagnostic Trouble Codes (DTCs).

    • Wait 30 seconds.

    • NOTE: DTC B1252:13 may be present when carrying out this step and should be disregarded at this time.

      Using a diagnostic scan tool, carry out the APIM self-test.

    Is DTC B1252:11 still present?

    Yes  GO to  P13
    No  INSTALL a new USB cable.

  7. P6 CHECK THE MEDIA HUB POWER AND RETURN CIRCUITS FOR A SHORT TO GROUND

    • Ignition OFF.

    • Disconnect APIM C2383A.

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      Refer to C2383A-8
      GFD328352Courtesy of FORD MOTOR COMPANY
      		 Ground
      Refer to C2383A-38
      GFD328352Courtesy of FORD MOTOR COMPANY
      		 Ground

    Are the resistances greater than 10, 000 ohms?

    Yes  GO to  P7
    No  REPAIR the circuit in question.

  8. P7 CHECK THE MEDIA HUB POWER AND RETURN CIRCUITS FOR A SHORT TO EACH OTHER

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      Refer to C2383A-8
      GFD328352Courtesy of FORD MOTOR COMPANY
      		 Refer to C2383A-38

    Is the resistance greater than 10, 000 ohms?

    Yes  GO to  P13
    No  REPAIR the circuits.

  9. P8 CHECK FOR VOLTAGE TO THE MEDIA HUB

    • Ignition OFF.

    • Disconnect Media Hub C3512A.

    • Ignition ON.

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      Refer to C3512A-1
      GFD328349Courtesy of FORD MOTOR COMPANY
      		 Refer to C3512A-4

    Is the voltage greater than 11 volts?

    Yes  GO to  P11
    No  GO to  P9

  10. P9 CHECK THE USB (UNIVERSAL SERIAL BUS) HUB POWER AND RETURN CIRCUITS FOR A SHORT TO VOLTAGE

    • Ignition OFF.

    • Disconnect APIM C2383A.

    • Ignition ON.

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      Refer to C3512A-1
      GFD328349Courtesy of FORD MOTOR COMPANY
      		 Ground
      Refer to C3512A-4
      GFD328349Courtesy of FORD MOTOR COMPANY
      		 Ground

    Is any voltage present?

    Yes  REPAIR the circuit in question.
    No  GO to  P10

  11. P10 CHECK THE MEDIA HUB POWER AND RETURN CIRCUITS FOR AN OPEN

    • Ignition OFF.

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      Refer to C3512A-1
      GFD328352Courtesy of FORD MOTOR COMPANY
      		 Refer to C2383A-8
      Refer to C3512A-4
      GFD328352Courtesy of FORD MOTOR COMPANY
      		 Refer to C2383A-38

    Are the resistances less than 3 ohms?

    Yes  GO to  P13
    No  REPAIR the circuit in question.

  12. P11 BYPASS THE MEDIA HUB

    • Ignition OFF.

    • Disconnect Media Hub C3512B.

    • GFD328356Courtesy of FORD MOTOR COMPANY

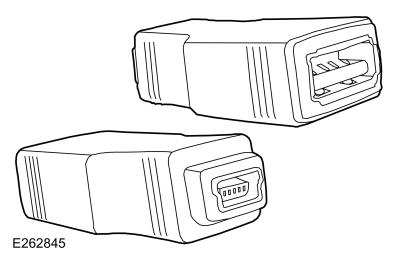

      Connect a Type A 4 Pin To Female Type Mini-B 5 Pin USB 2.0 Adaptor (Rotunda part number CCMUSB-AF-BF5) or equivalent to the media hub C3512B.

    • Ignition ON.

    • Connect the MIT 105-00120 to the USB adaptor.

    • Using the MIT 105-00120, attempt to play an audio file.

    Is the audio output OK?

    Yes  INSTALL a new media hub.
    No  GO to  P12

  13. P12 BYPASS THE USB (UNIVERSAL SERIAL BUS) CABLE

    • Ignition OFF.

    • Obtain a new USB cable.

    • Connect one end of the new USB cable to the APIM C2383B.

    • GFD328356Courtesy of FORD MOTOR COMPANY

      Connect a Type A 4 Pin To Female Type Mini-B 5 Pin USB 2.0 Adaptor (Rotunda part number CCMUSB-AF-BF5) or equivalent to the new USB cable.

    • Ignition ON.

    • Connect the MIT 105-00120 to the USB adaptor.

    • Using the MIT 105-00120, attempt to play an audio file.

    Is the audio output OK?

    Yes  INSTALL the new USB cable.
    No  GO to  P13

  14. P13 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION

    • Ignition OFF.

    • Disconnect and inspect the APIM connectors.

    • Repair:

      • corrosion (install new connectors or terminals - clean module pins)
      • damaged or bent pins - install new terminals pins
      • pushed-out pins - install new pins as necessary

    • Reconnect the APIM connectors. Make sure they seat and latch correctly.

    • Wait 2 minutes for the APIM to re-initialize.

    • Operate the system and determine if the concern is still present.

    Is the concern still present?

    Yes  CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, Refer to APIM GUIDED ROUTINE TESTING
    No  The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.
