Rear Wheel Speed Sensor - 4WD: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Note the position of the rear wheel speed sensor before removal.

Remove the wheel and tire. Refer to: Wheel and Tire .

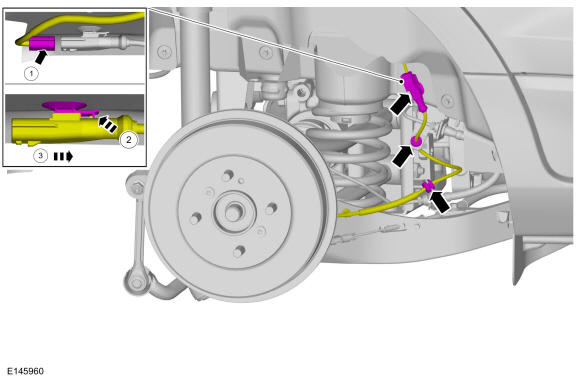

Disconnect the electrical connector and detach the wiring retainers.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the area around the component is clean and free of foreign material.

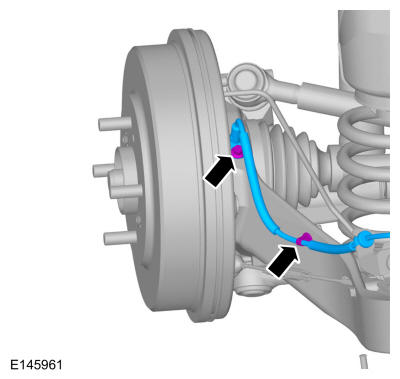

Detach the wiring retainer, remove the bolt and the rear wheel speed sensor.

Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
