Hydraulic Control Unit (HCU): Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: A new HCU is equipped with a new ABS module.

NOTE: The PMI process must begin with the current ABS module installed. If the current ABS module does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the ABS module following the on-screen instructions.

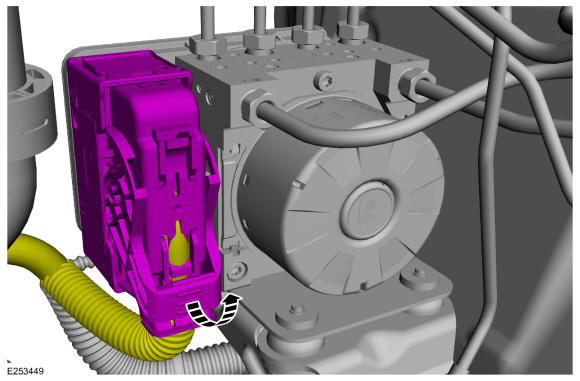

Disconnect the ABS module electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

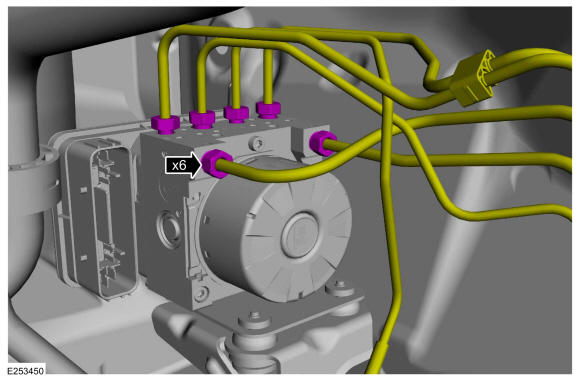

Disconnect the brake tube fittings.

Torque

: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

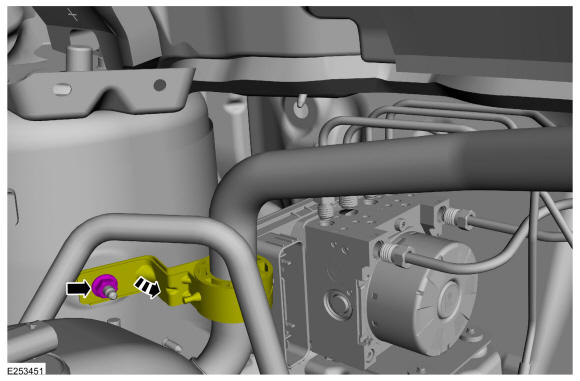

If equipped. Remove the nut and detach the evaporator inlet and outlet manifold bracket.
Torque

: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

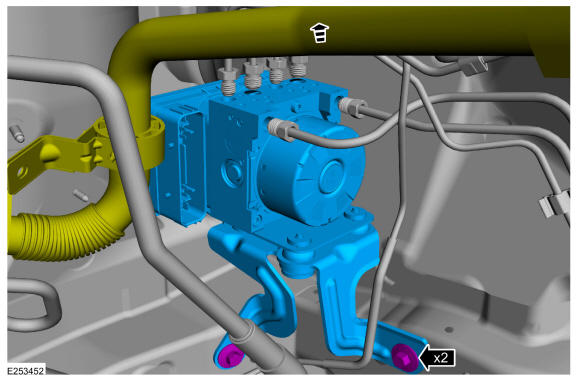

Remove the bolts and pulling slightly upwards on the evaporator inlet and outlet manifold (if equipped), remove the HCU and ABS module assembly.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary if a new HCU is being installed.

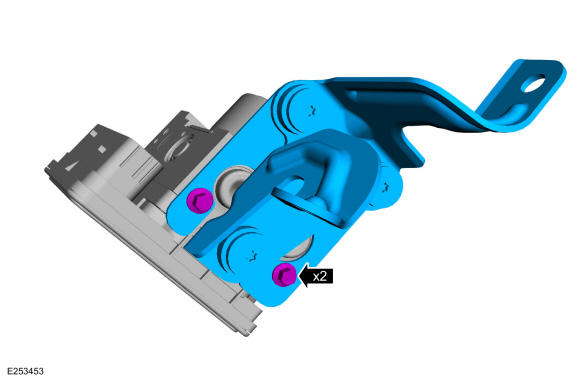

Remove the bolts and the HCU bracket.

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
