Front Wheel Speed Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Note the position of the front wheel speed sensor before removal.

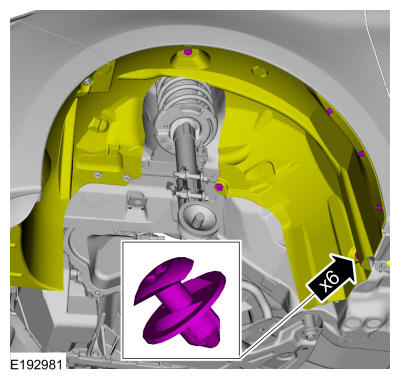

- Remove the retainers and pull the fender splash shield back to access the wheel speed sensor electrical connector.

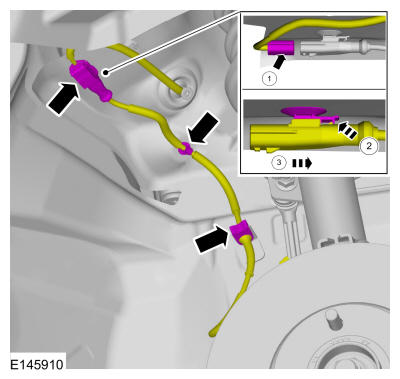

- Disconnect the electrical connector and detach the wiring retainers.
-
NOTE: Make sure that the area around the component is clean and free of foreign material.

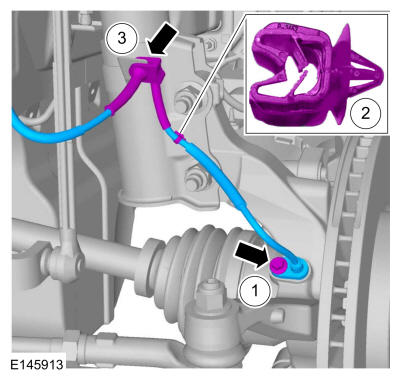

Remove the bolt, detach the wiring retainers and remove the front wheel speed sensor.
