Anti-Lock Brake System (ABS) - Component Location

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

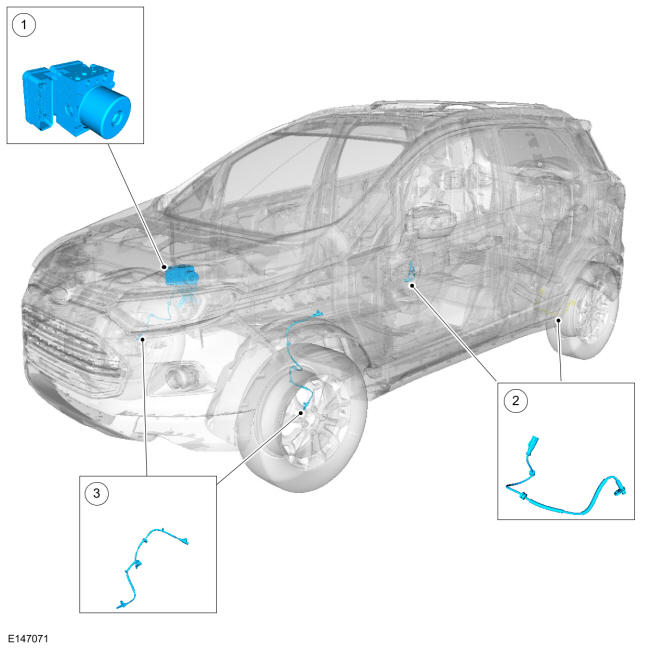

GFD324649Courtesy of FORD MOTOR COMPANY
Item Description
1 ABS module and HCU assembly
2 Rear wheel speed sensor
3 Front wheel speed sensor
