Component Testing

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

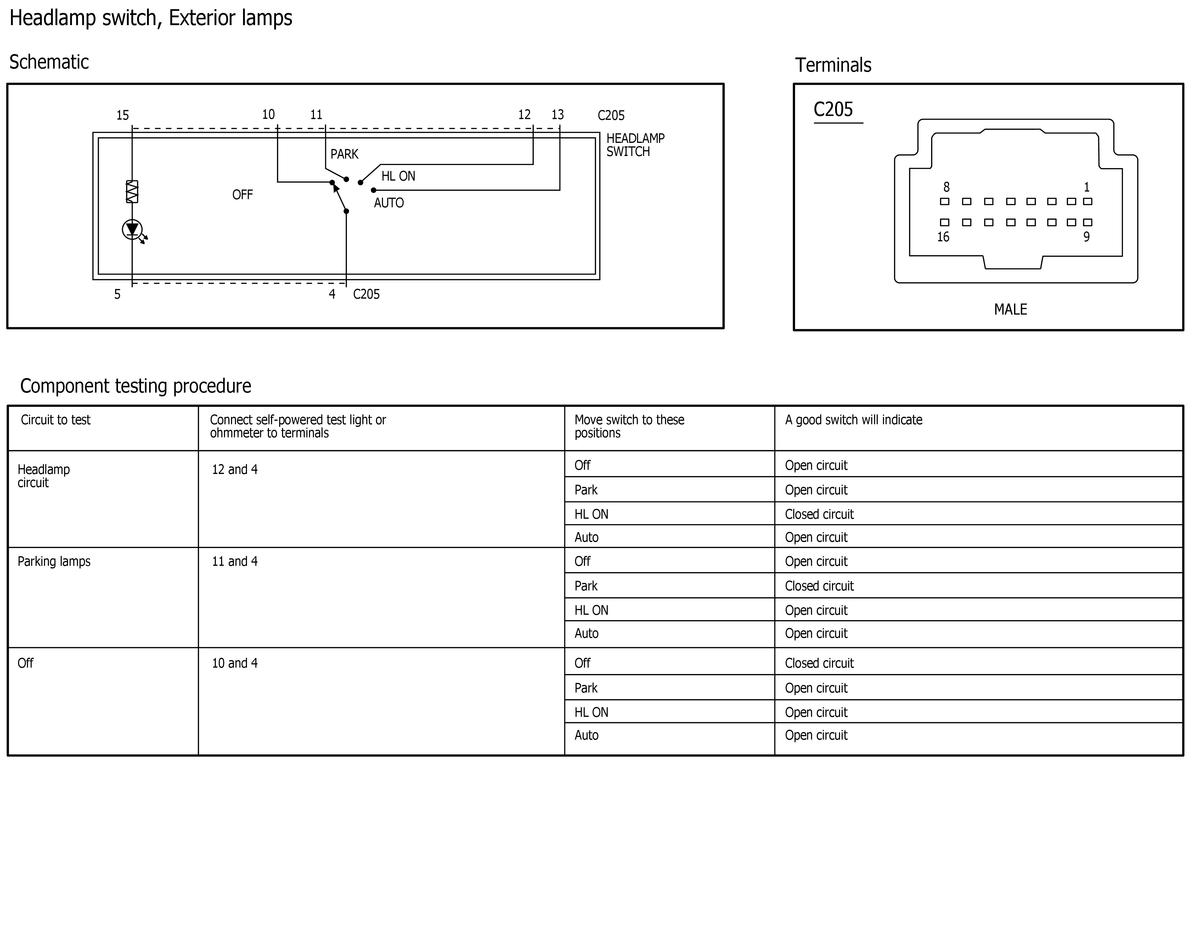

Fig 1: HeadLamp Switch/Exterior Lamps Component Testing

Courtesy of FORD MOTOR COMPANY

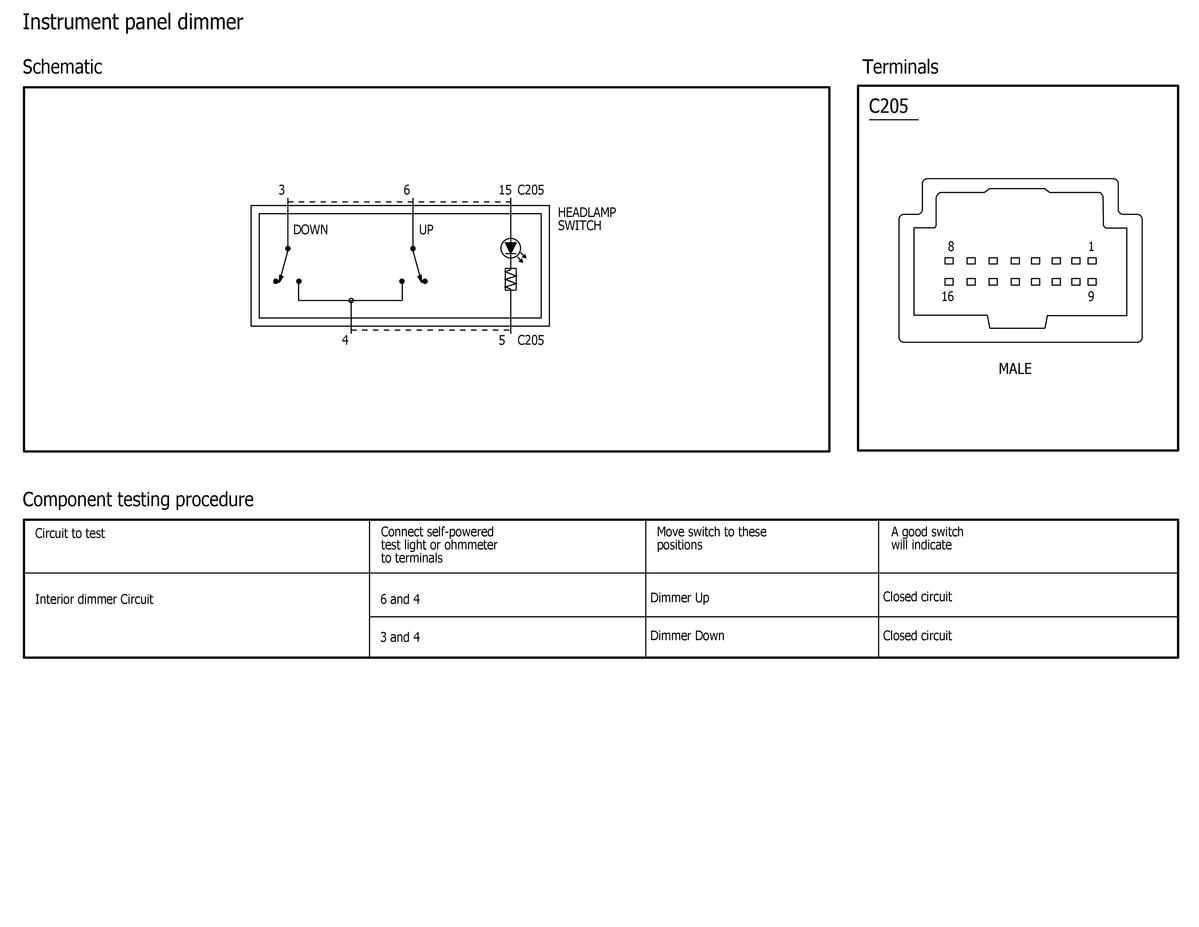

Fig 2: Interior Panel Dimmer Component Testing

Courtesy of FORD MOTOR COMPANY

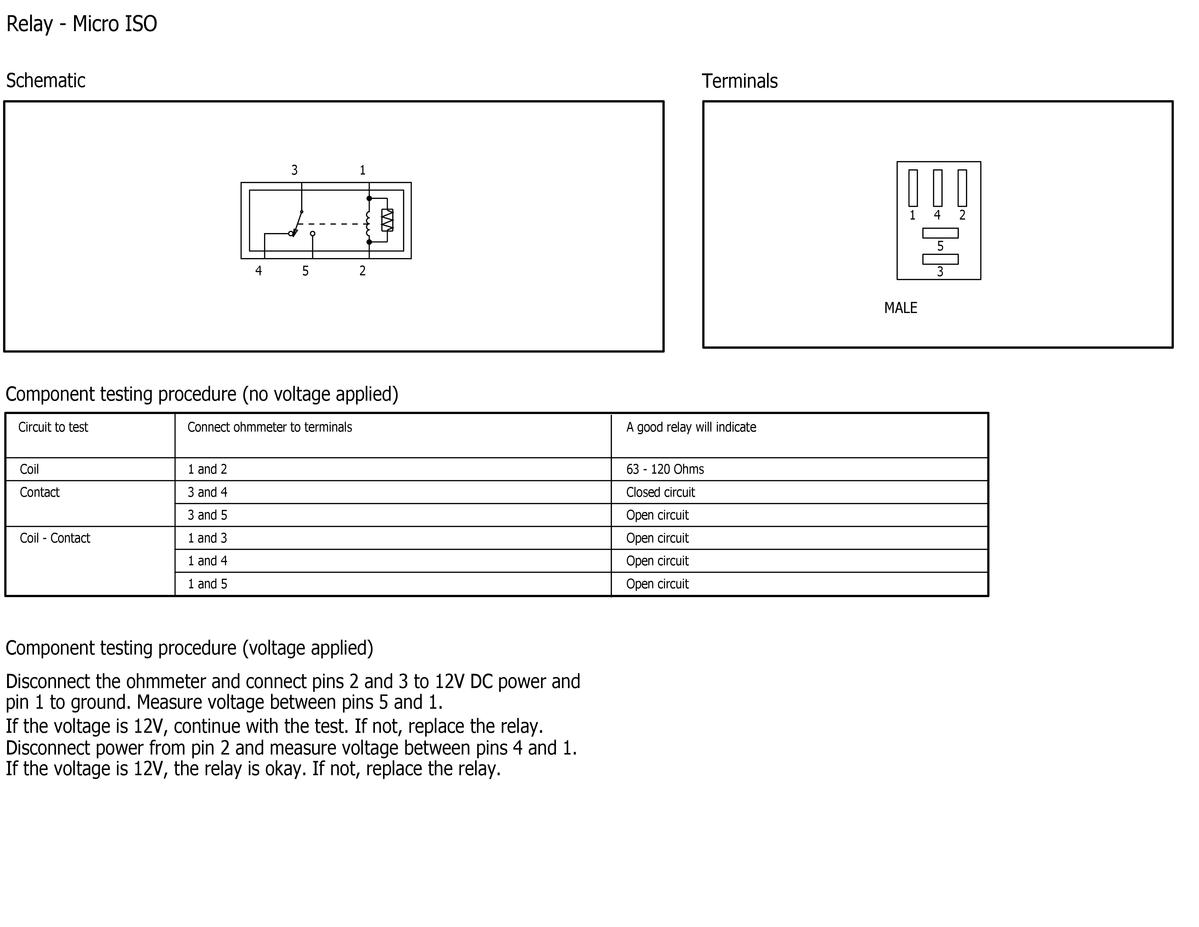

Fig 3: Relay - Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

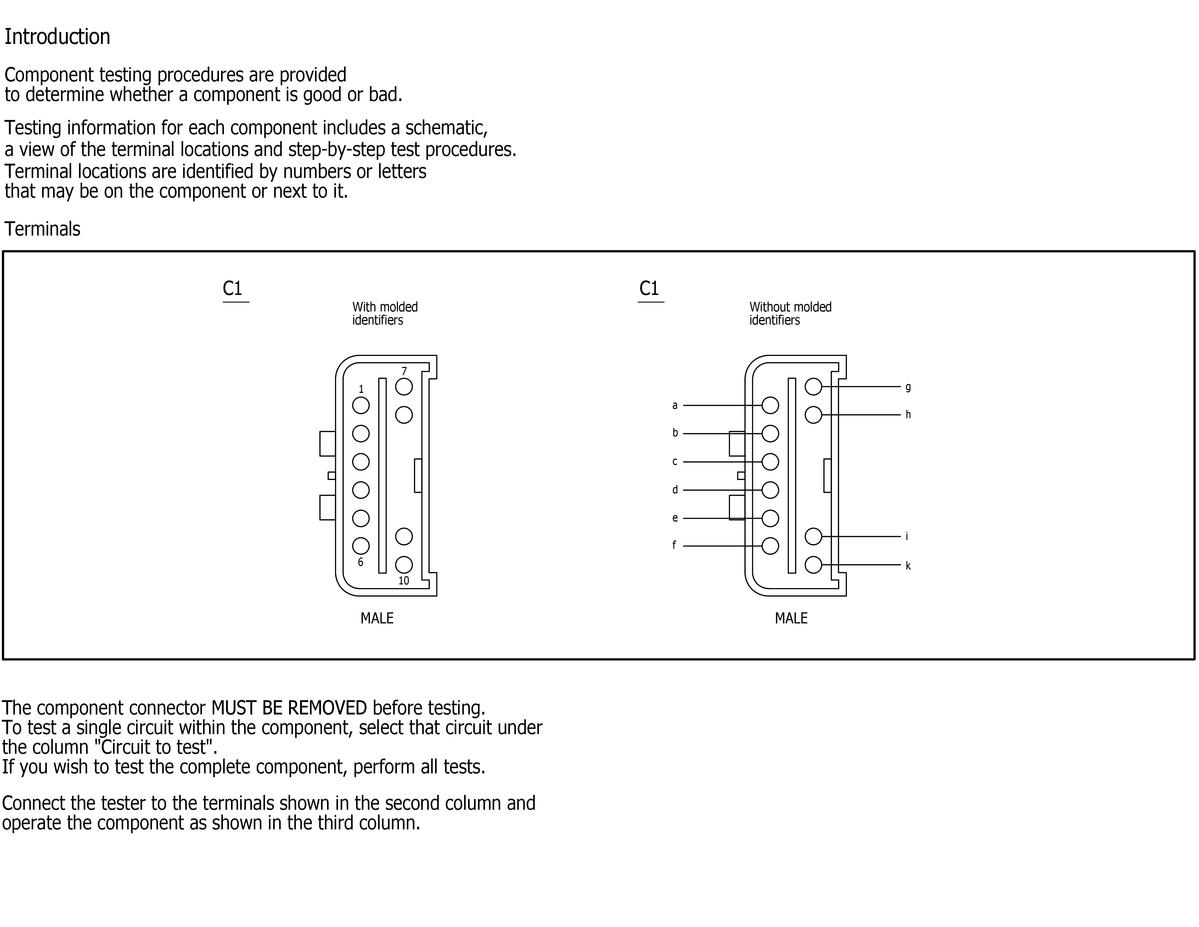

Fig 4: Introduction

Courtesy of FORD MOTOR COMPANY

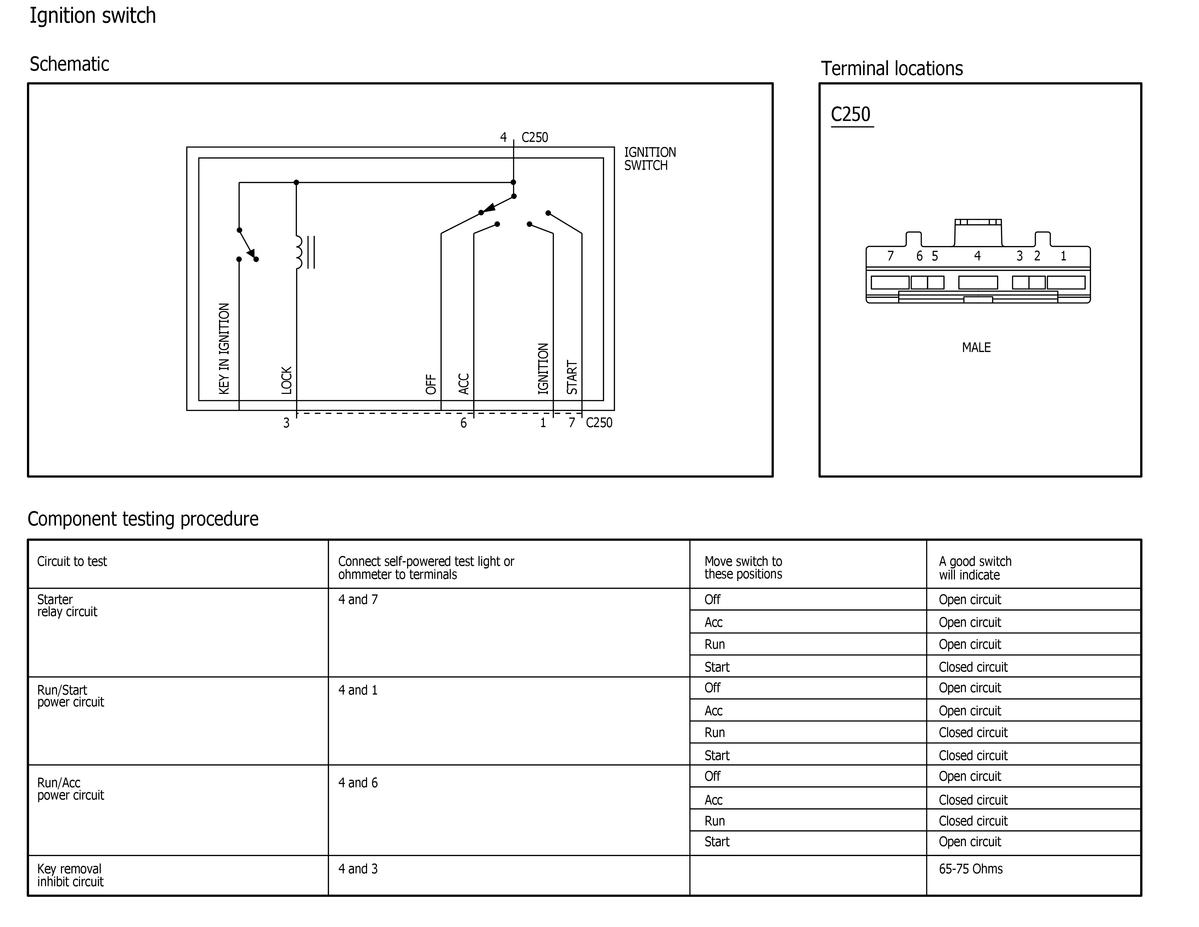

Fig 5: Introduction Component Testing

Courtesy of FORD MOTOR COMPANY

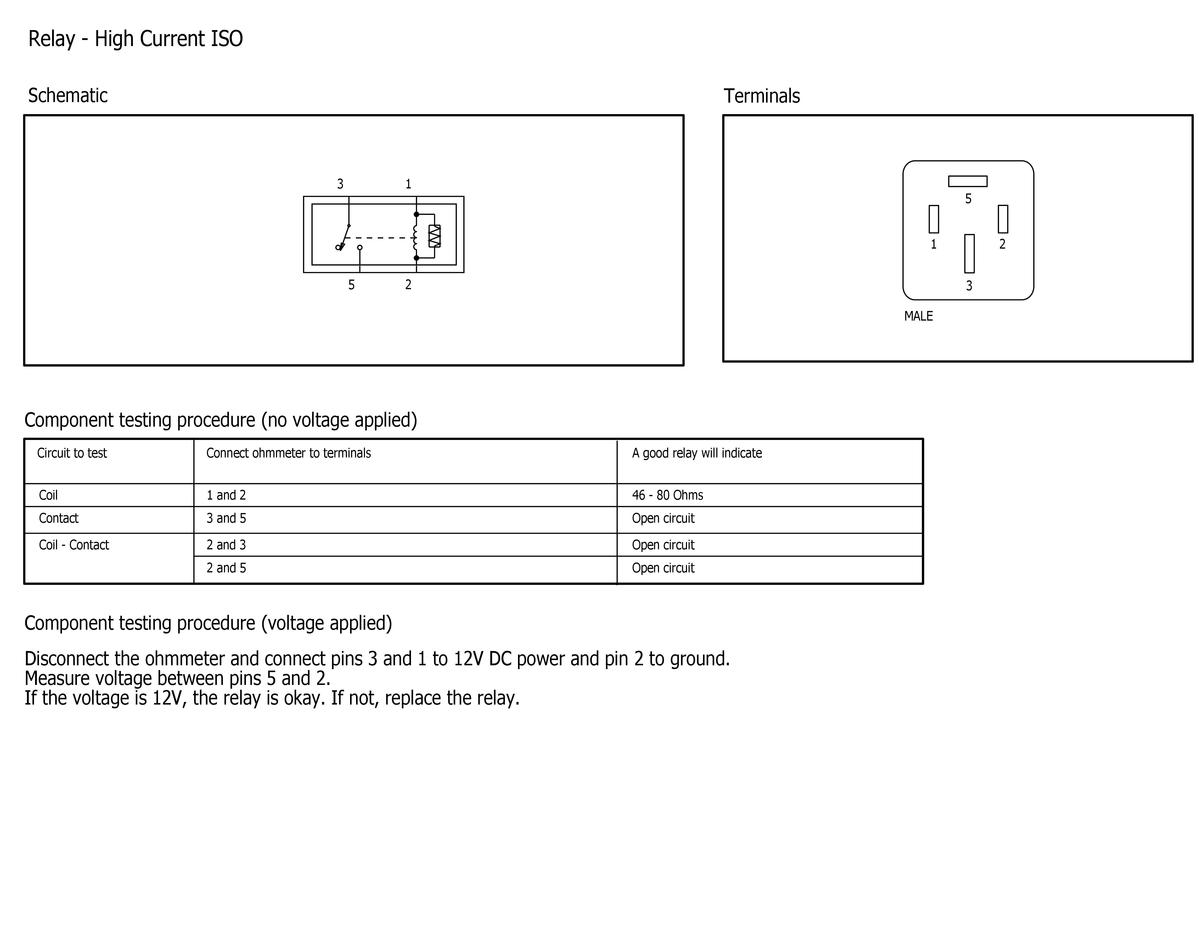

Fig 6: Relay - High Current ISO Component Testing

Courtesy of FORD MOTOR COMPANY
