WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

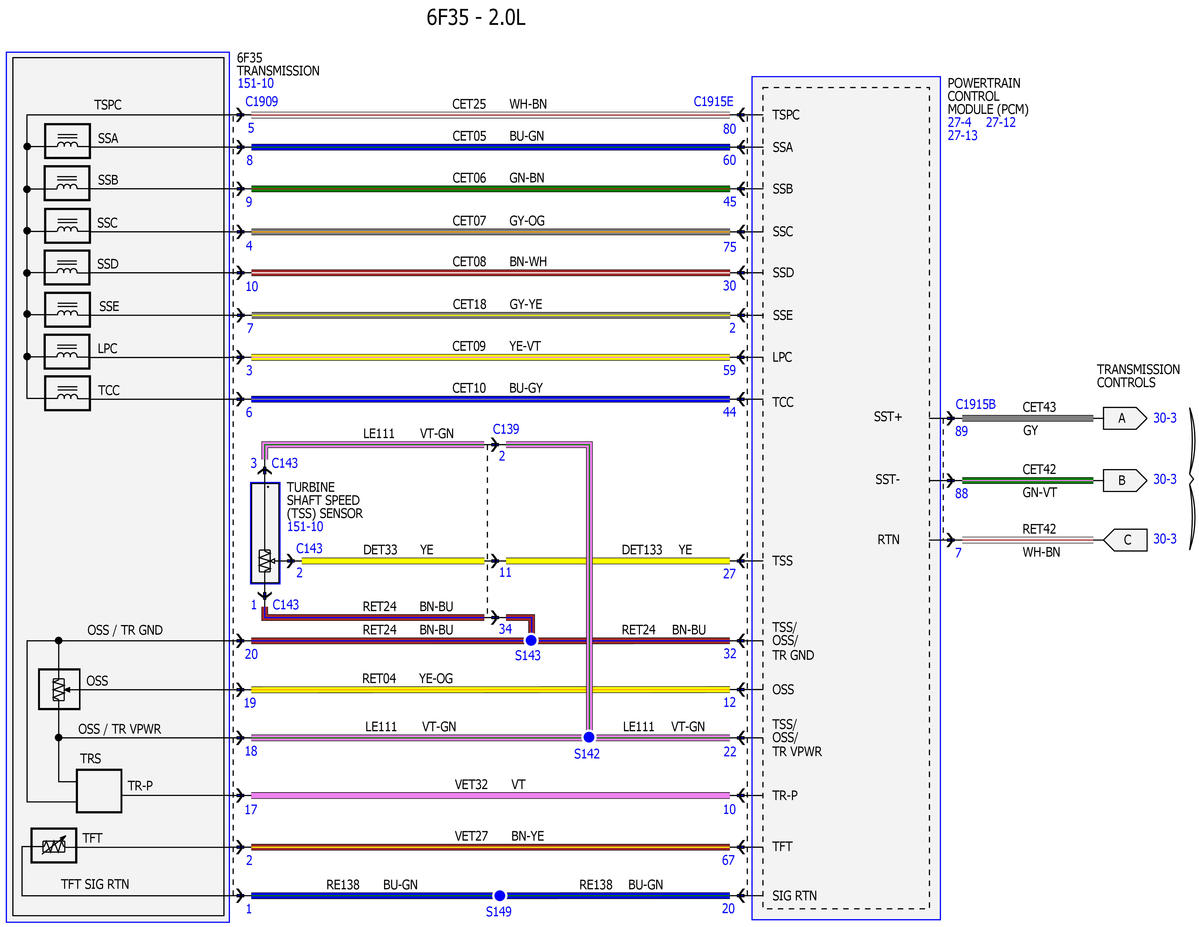

Fig 1: Transmission Controls Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR COMPANY
Fig 2: Transmission Controls Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR COMPANY
Fig 3: Transmission Controls Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR COMPANY
Fig 4: Transmission Controls Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR COMPANY

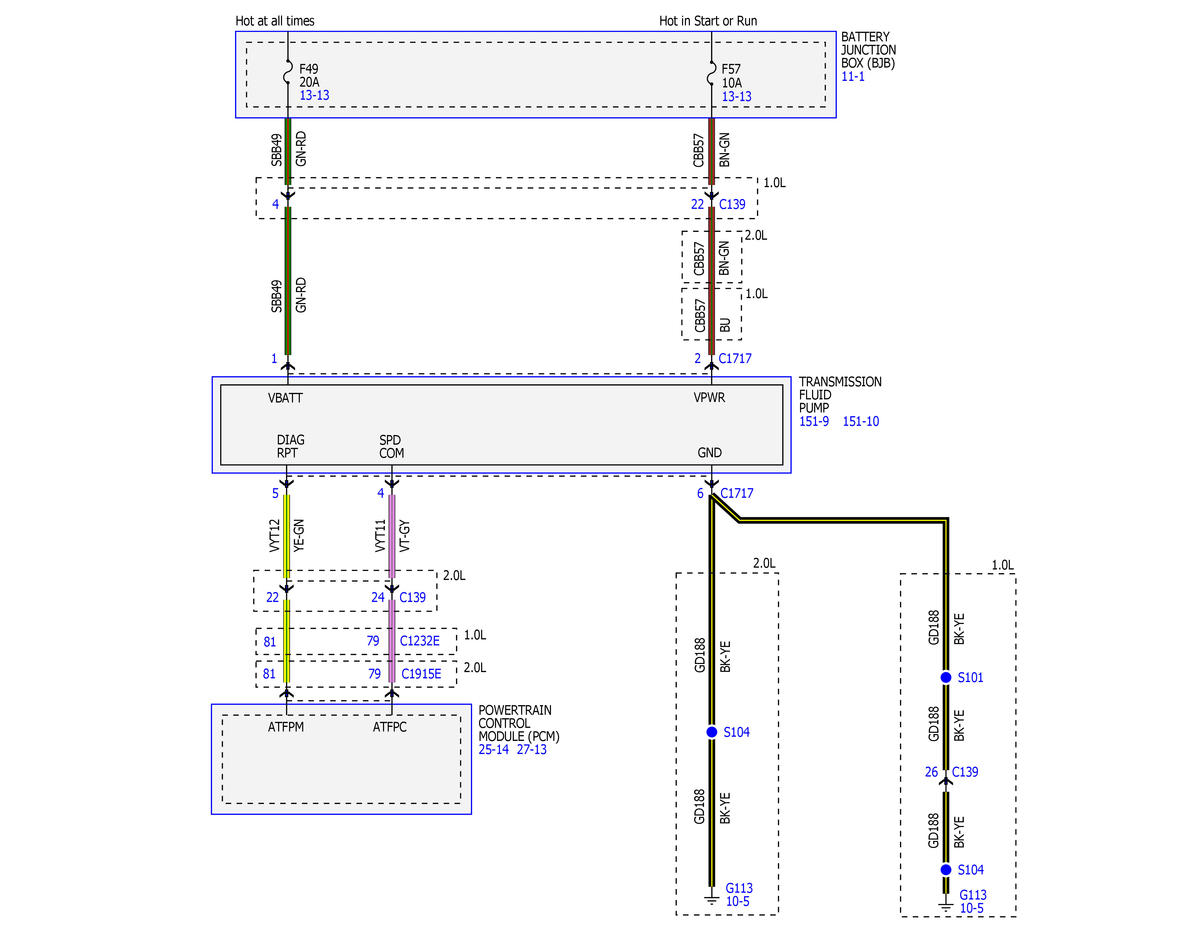

Fig 5: Transmission Controls Wiring Diagram (5 Of 5)
