WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

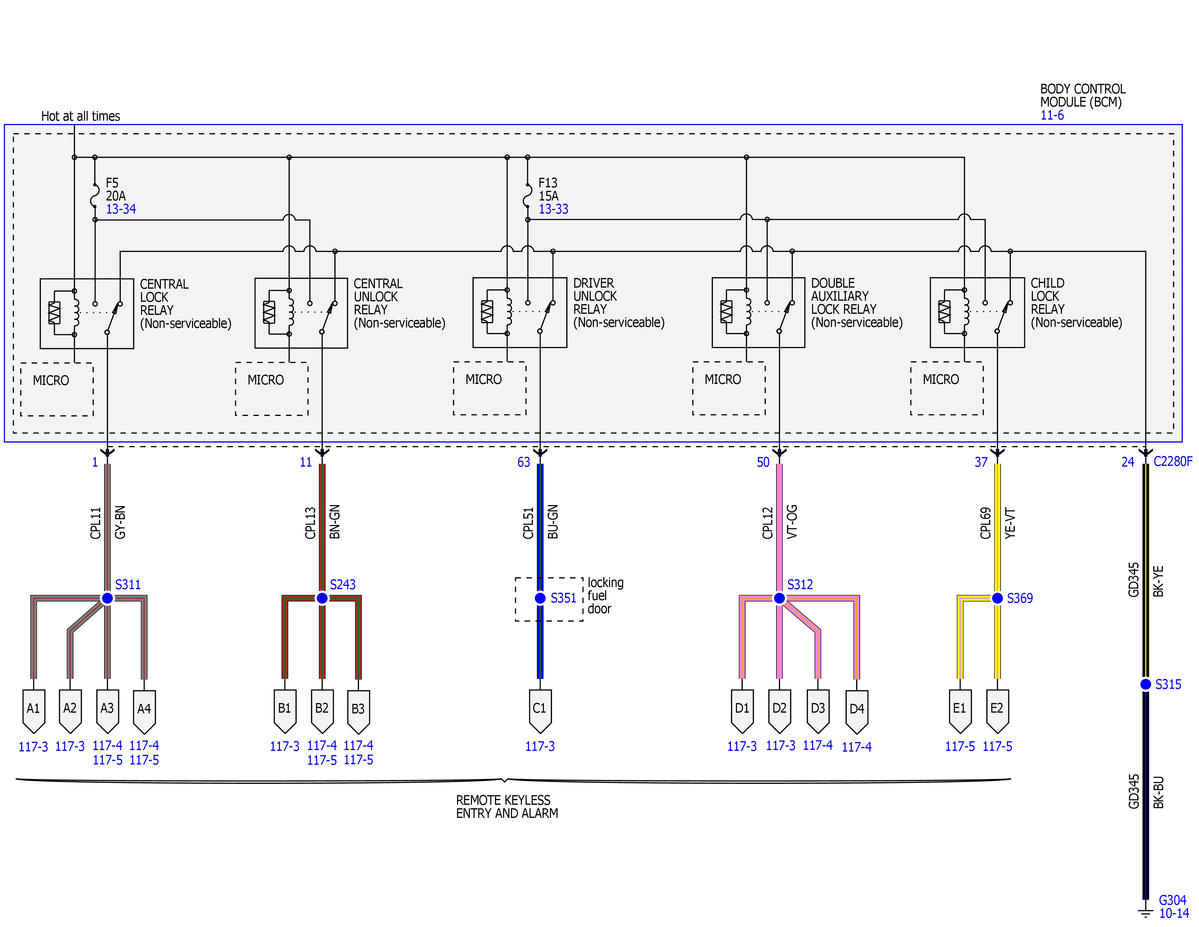

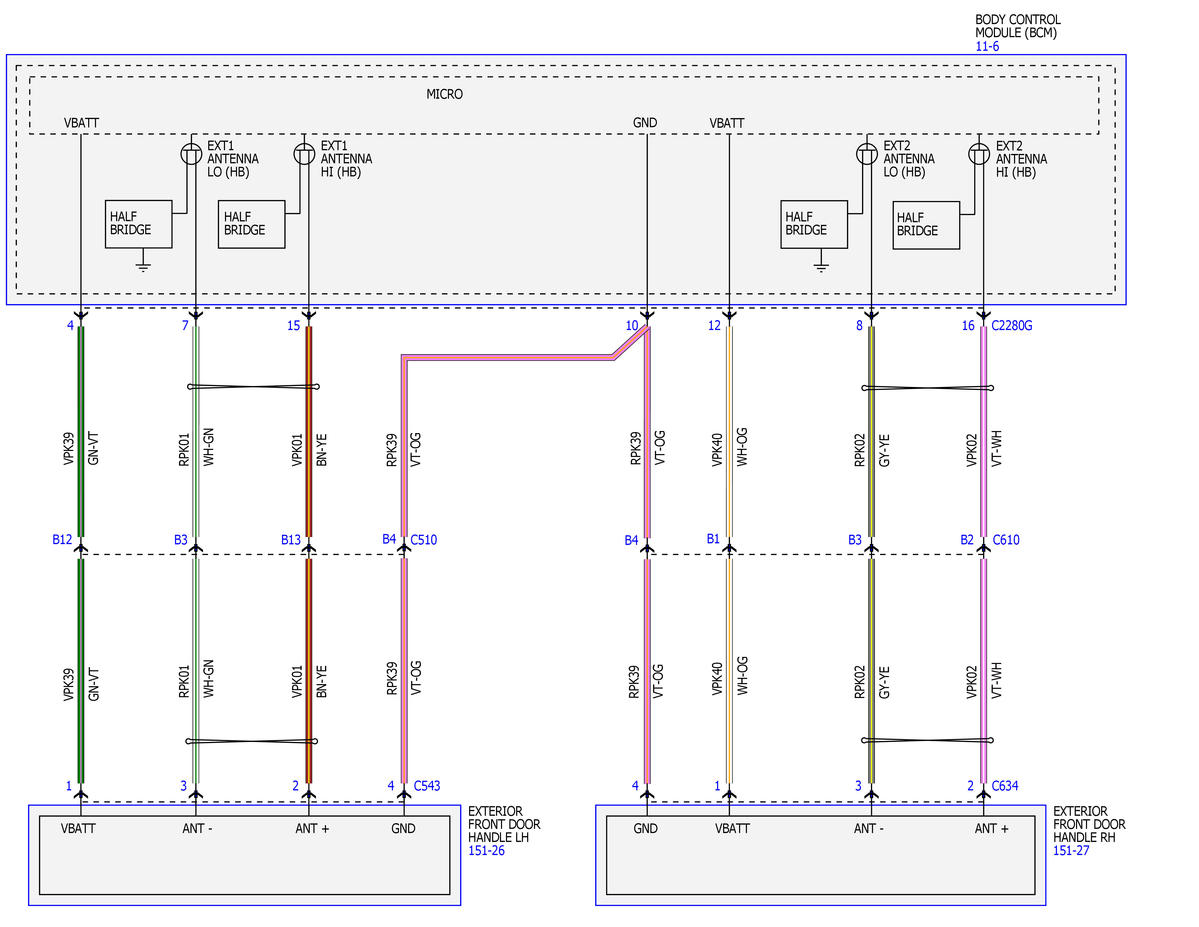

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram (1 Of 10)
Courtesy of FORD MOTOR COMPANY

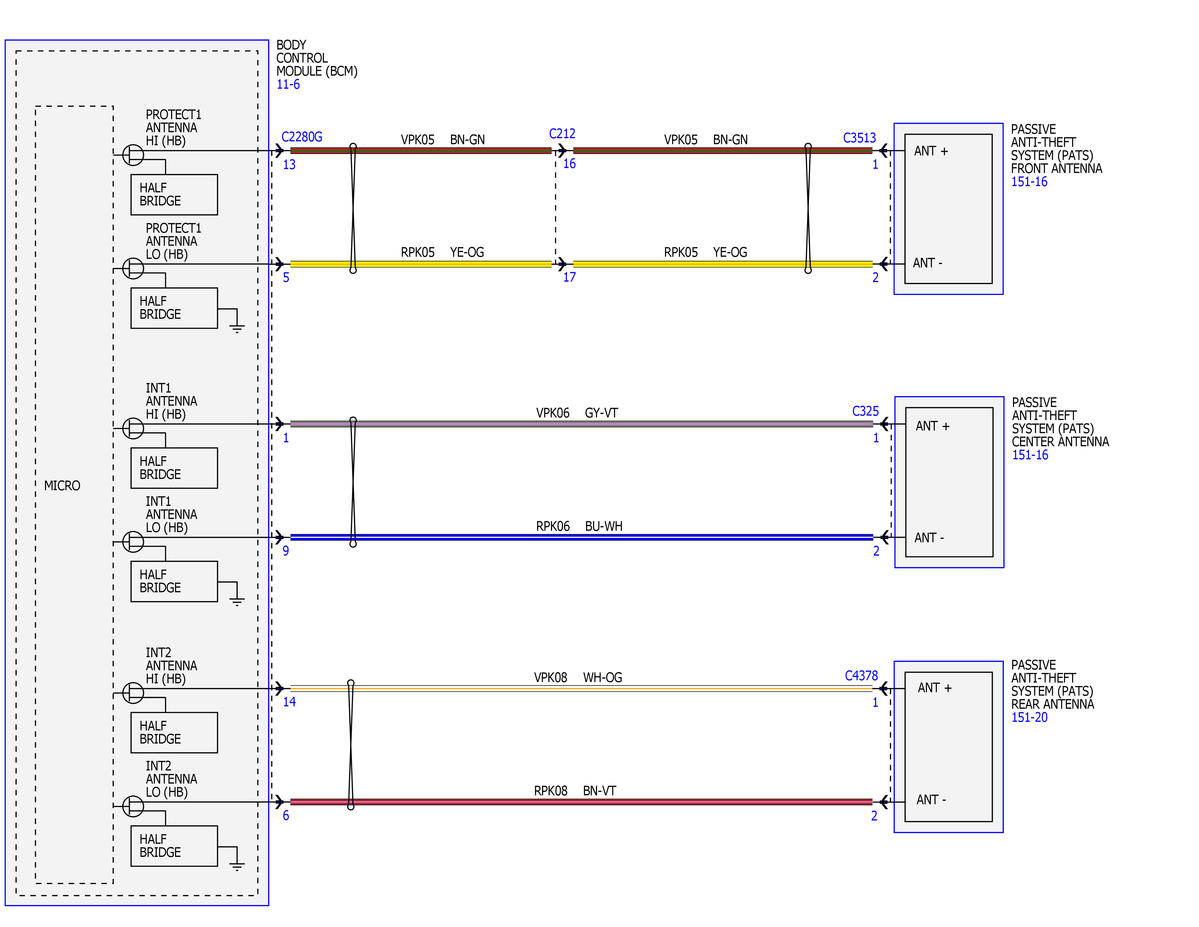

Fig 2: Remote Keyless Entry And Alarm Wiring Diagram (2 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 3: Remote Keyless Entry And Alarm Wiring Diagram (3 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 4: Remote Keyless Entry And Alarm Wiring Diagram (4 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 5: Remote Keyless Entry And Alarm Wiring Diagram (5 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 6: Remote Keyless Entry And Alarm Wiring Diagram (6 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 7: Remote Keyless Entry And Alarm Wiring Diagram (7 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 8: Remote Keyless Entry And Alarm Wiring Diagram (8 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 9: Remote Keyless Entry And Alarm Wiring Diagram (9 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 10: Remote Keyless Entry And Alarm Wiring Diagram (10 Of 10)
