Section 24 (OEM Wiring Diagrams)
>>
Power Steering Controls
Power Steering Controls
WARNING:
This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

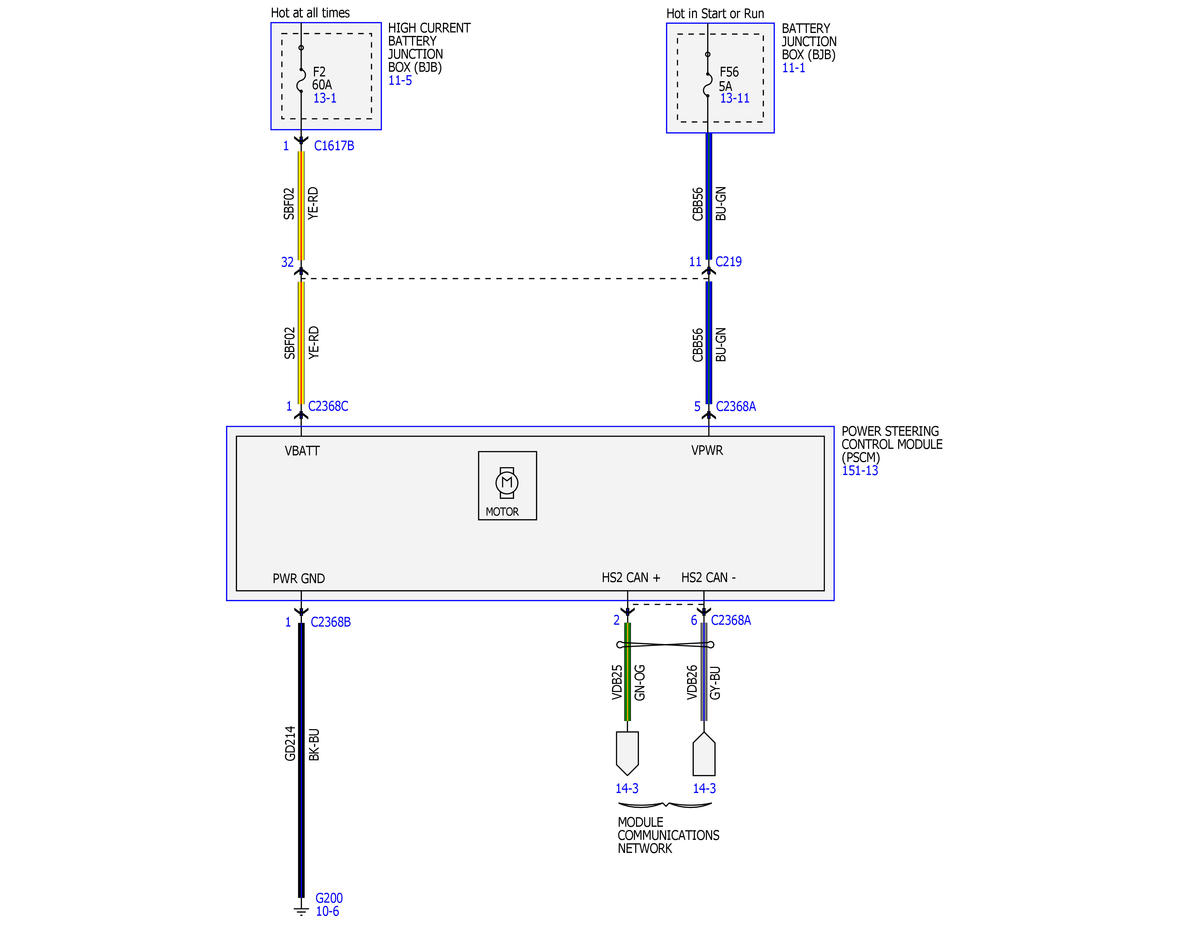

Fig 1: Power Steering Controls Wiring Diagram
Courtesy of FORD MOTOR COMPANY
