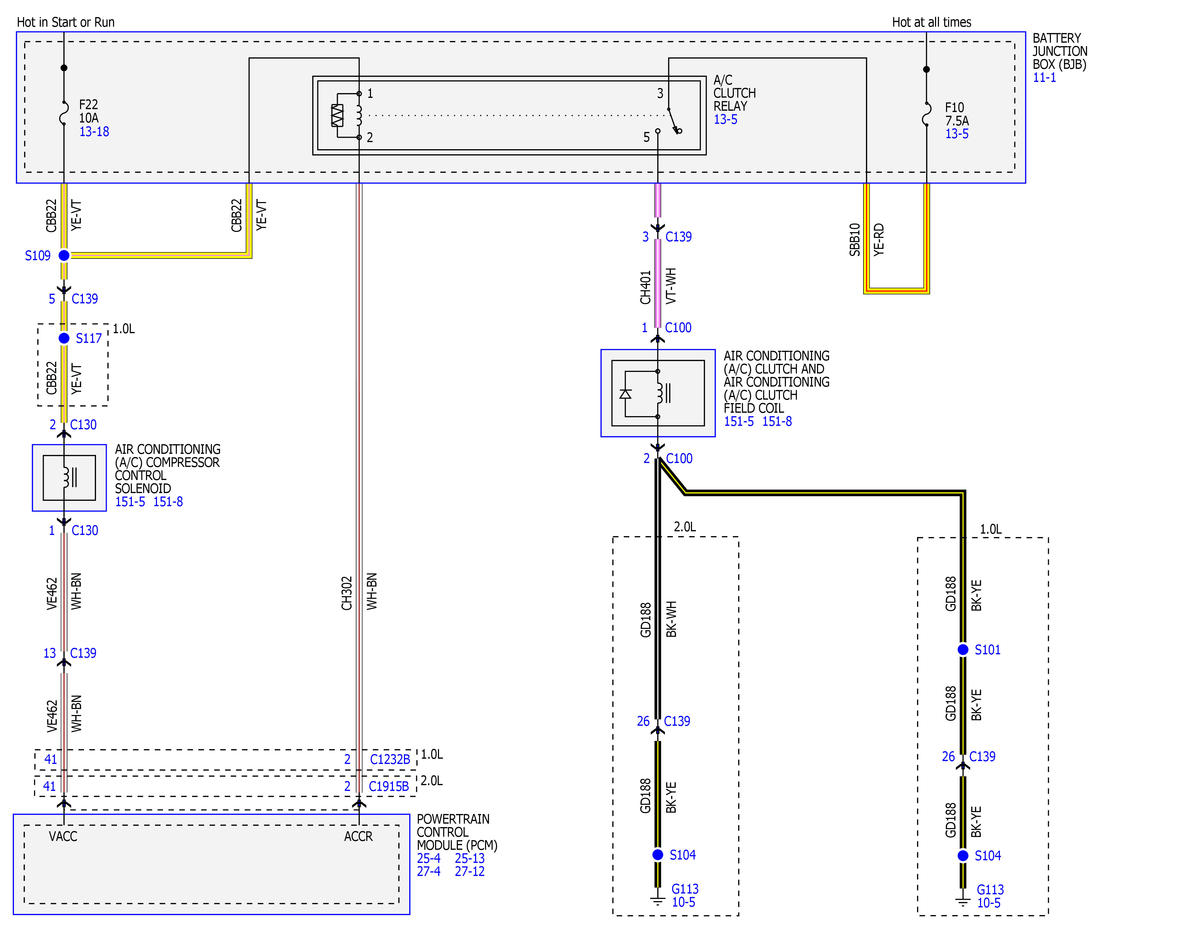

Fig 1: Manual Climate Control System Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR COMPANY

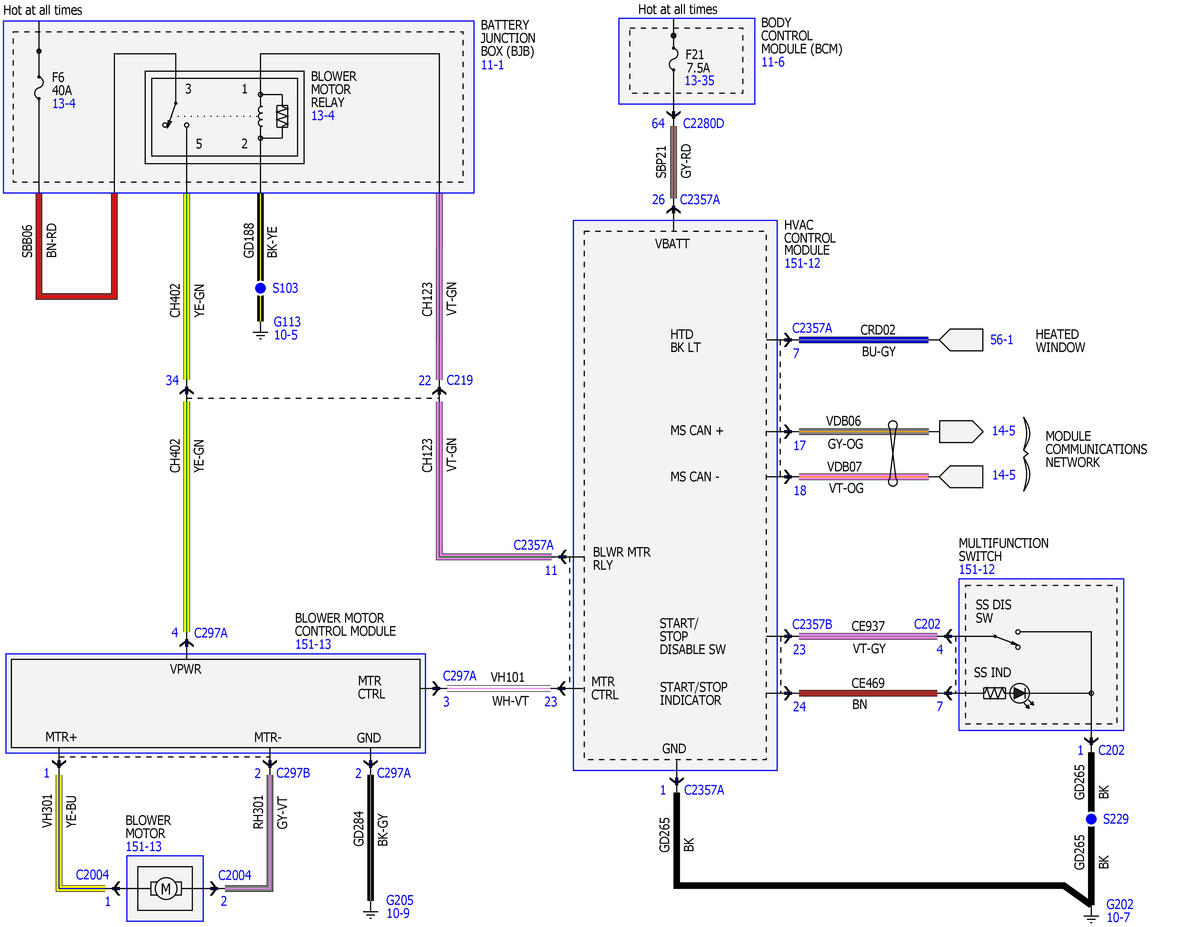

Fig 2: Manual Climate Control System Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR COMPANY

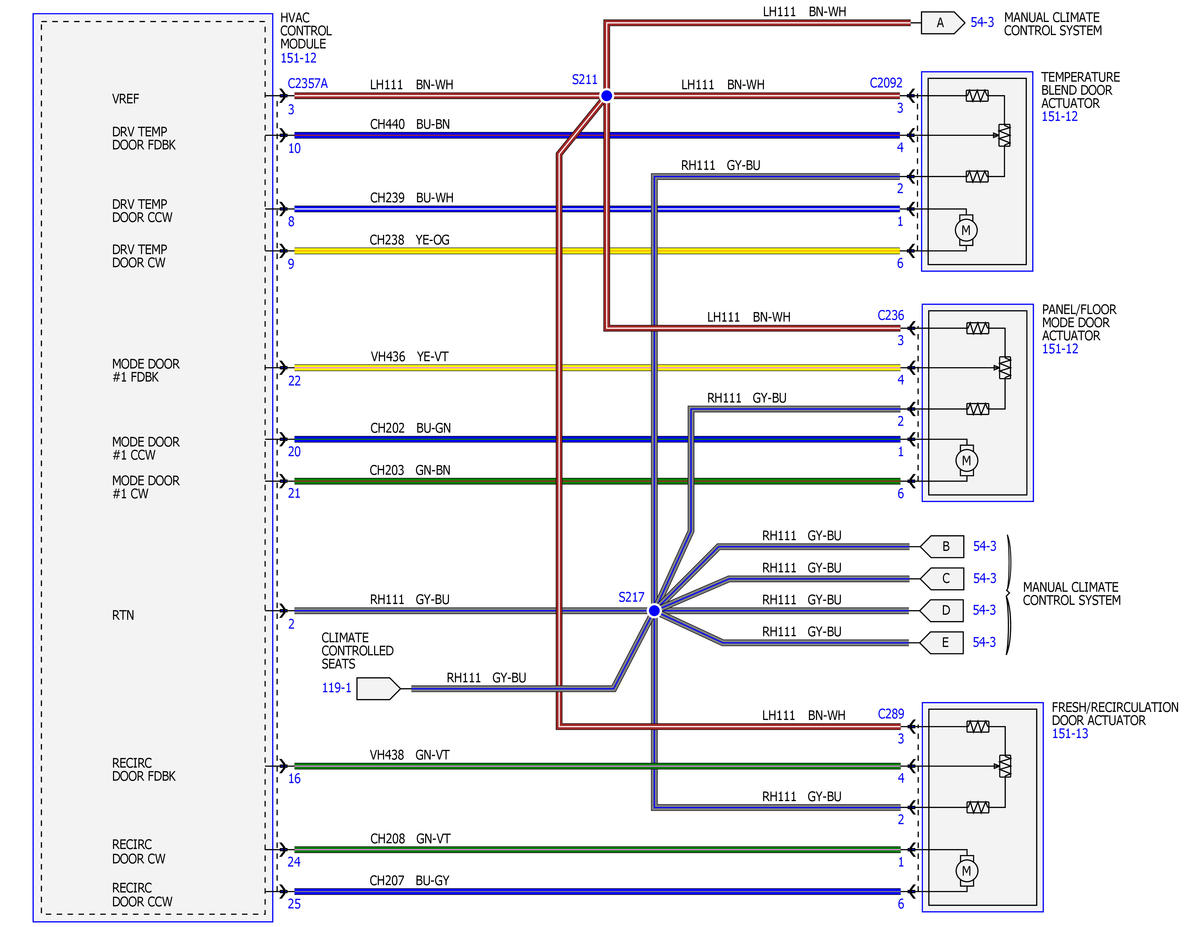

Fig 3: Manual Climate Control System Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR COMPANY

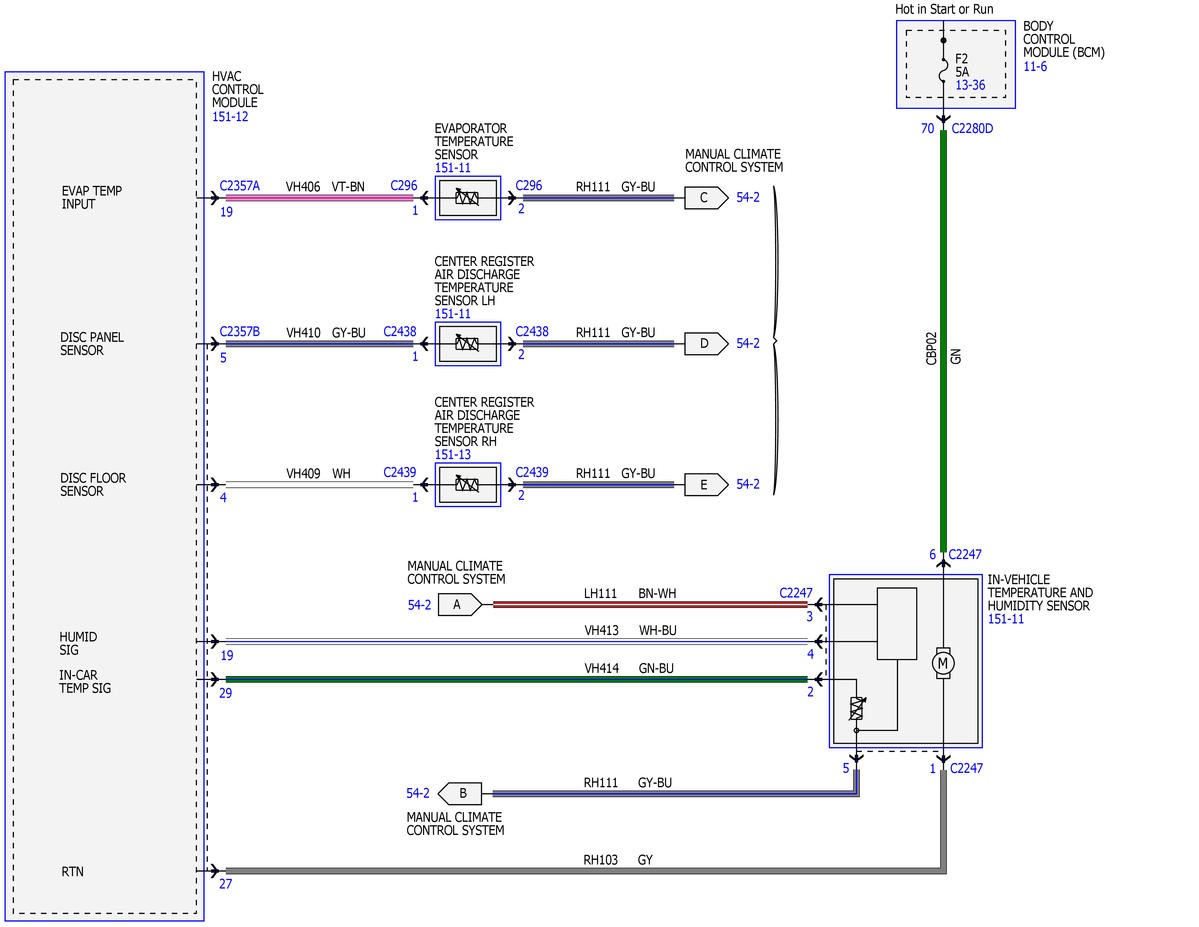

Fig 4: Manual Climate Control System Wiring Diagram (4 Of 4)
