WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

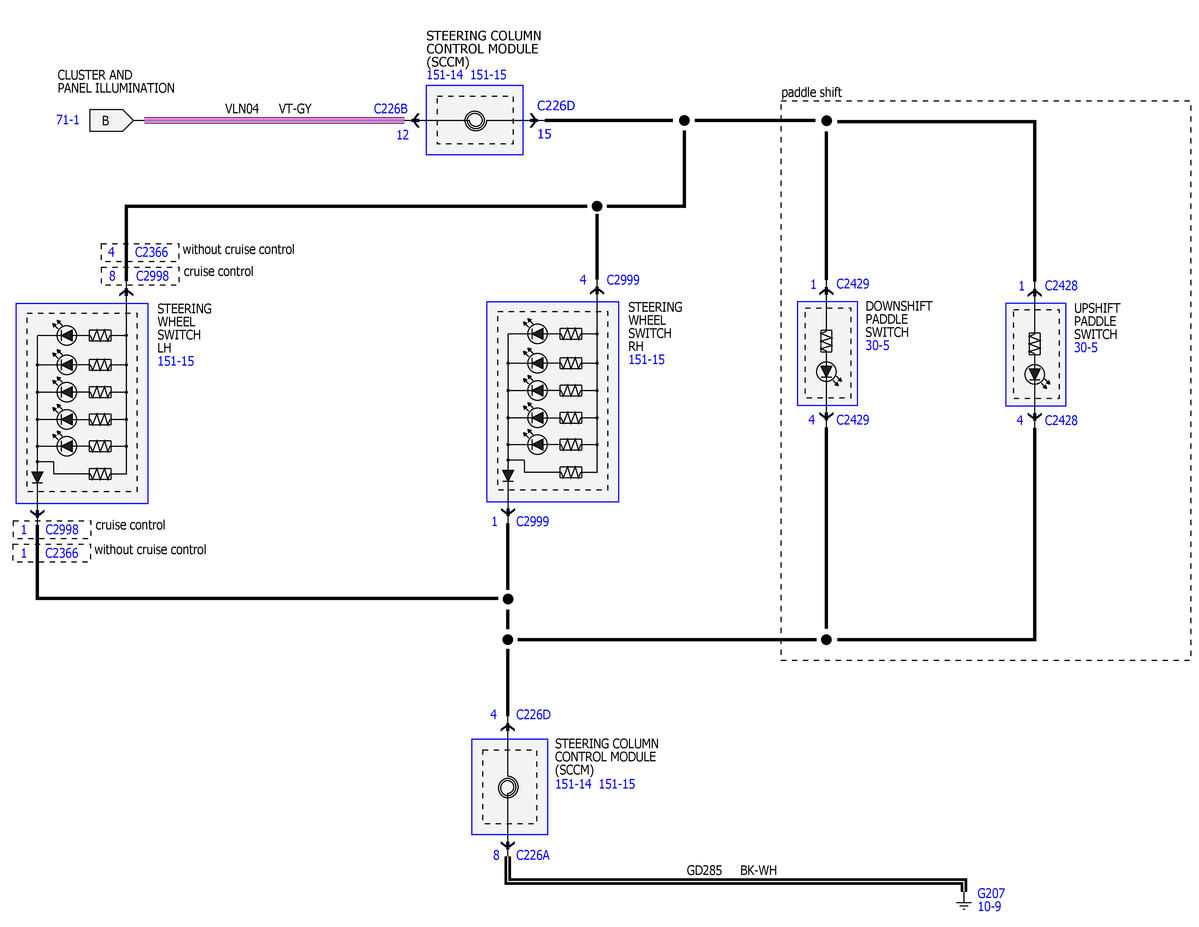

Fig 1: Cluster And Panel Illumination Wiring Diagram (1 Of 3)
Courtesy of FORD MOTOR COMPANY

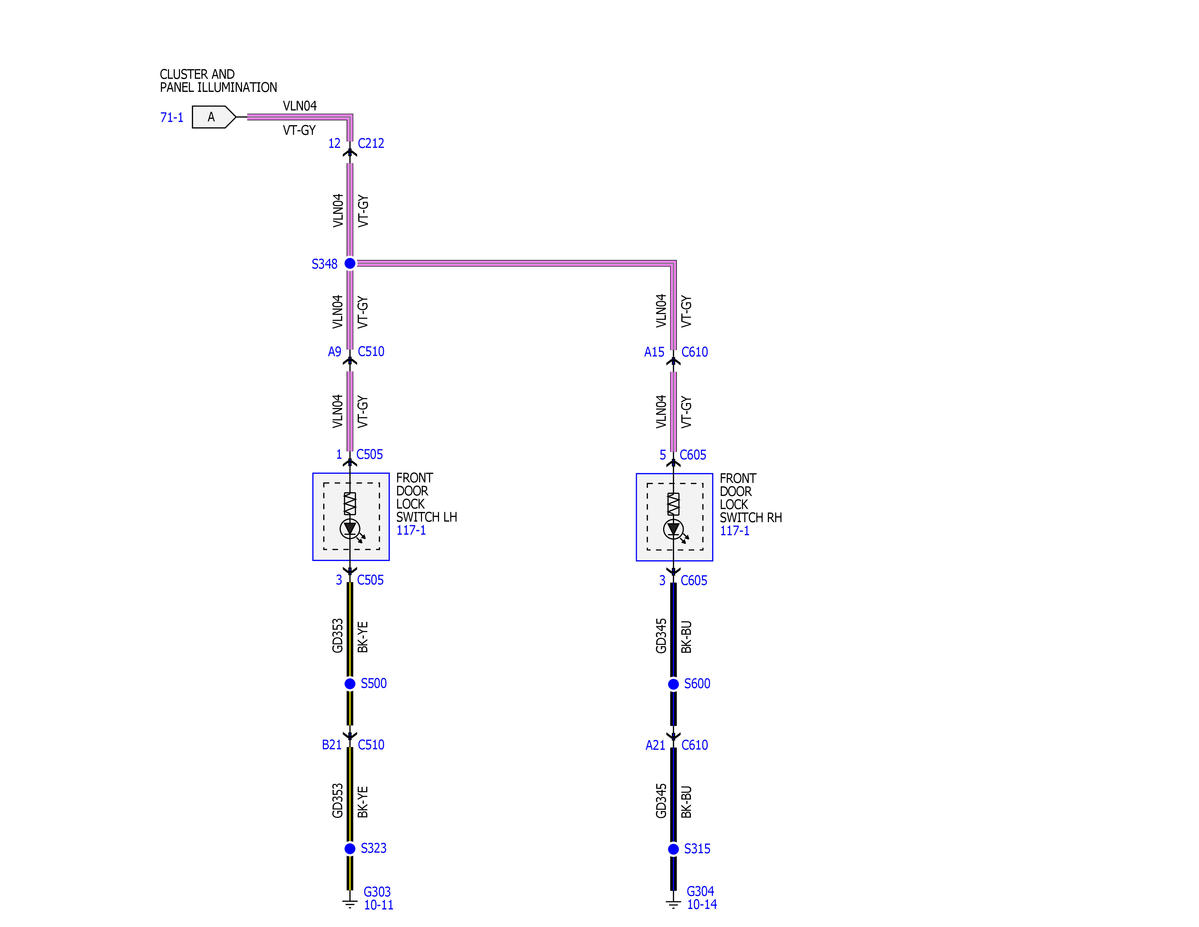

Fig 2: Cluster And Panel Illumination Wiring Diagram (2 Of 3)
Courtesy of FORD MOTOR COMPANY

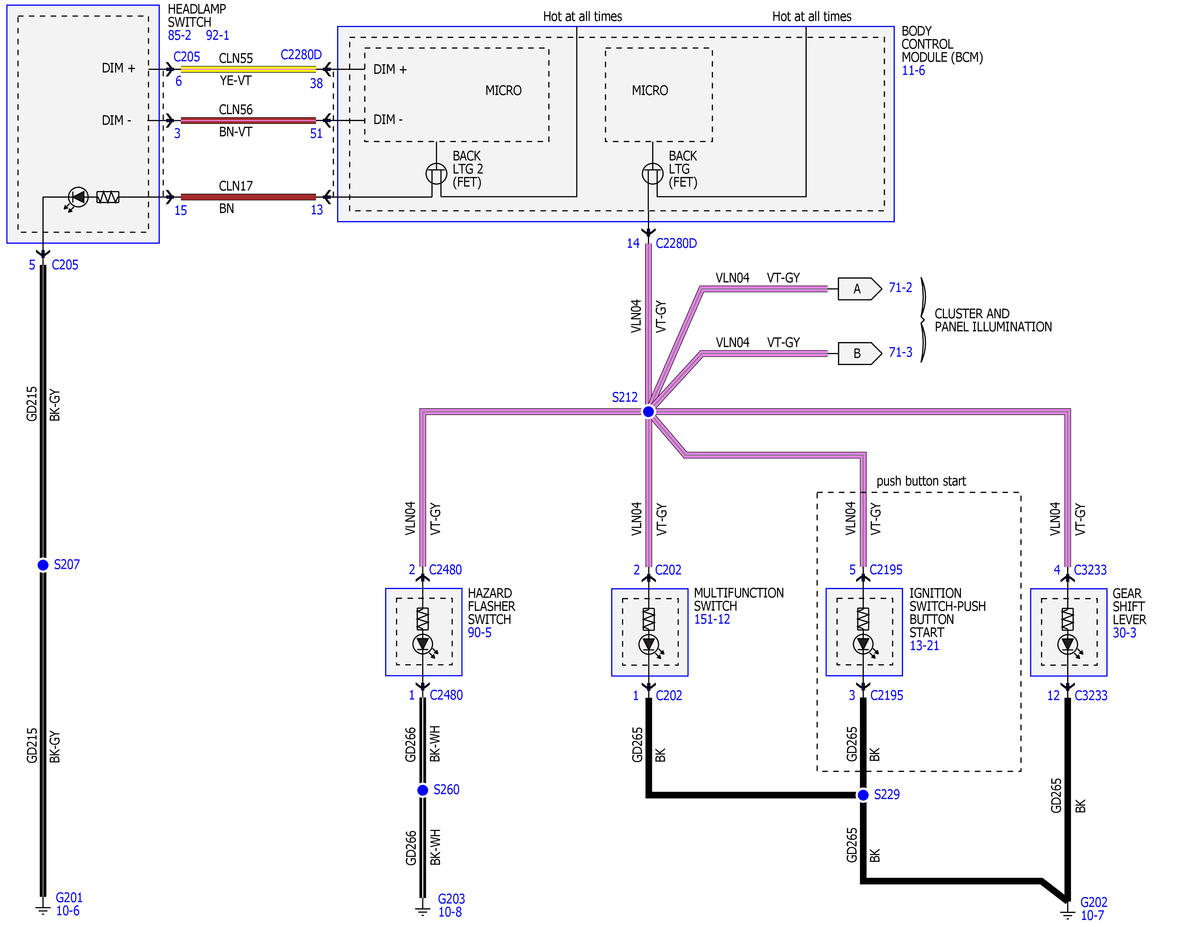

Fig 3: Cluster And Panel Illumination Wiring Diagram (3 Of 3)
