Climate Controlled Seats

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

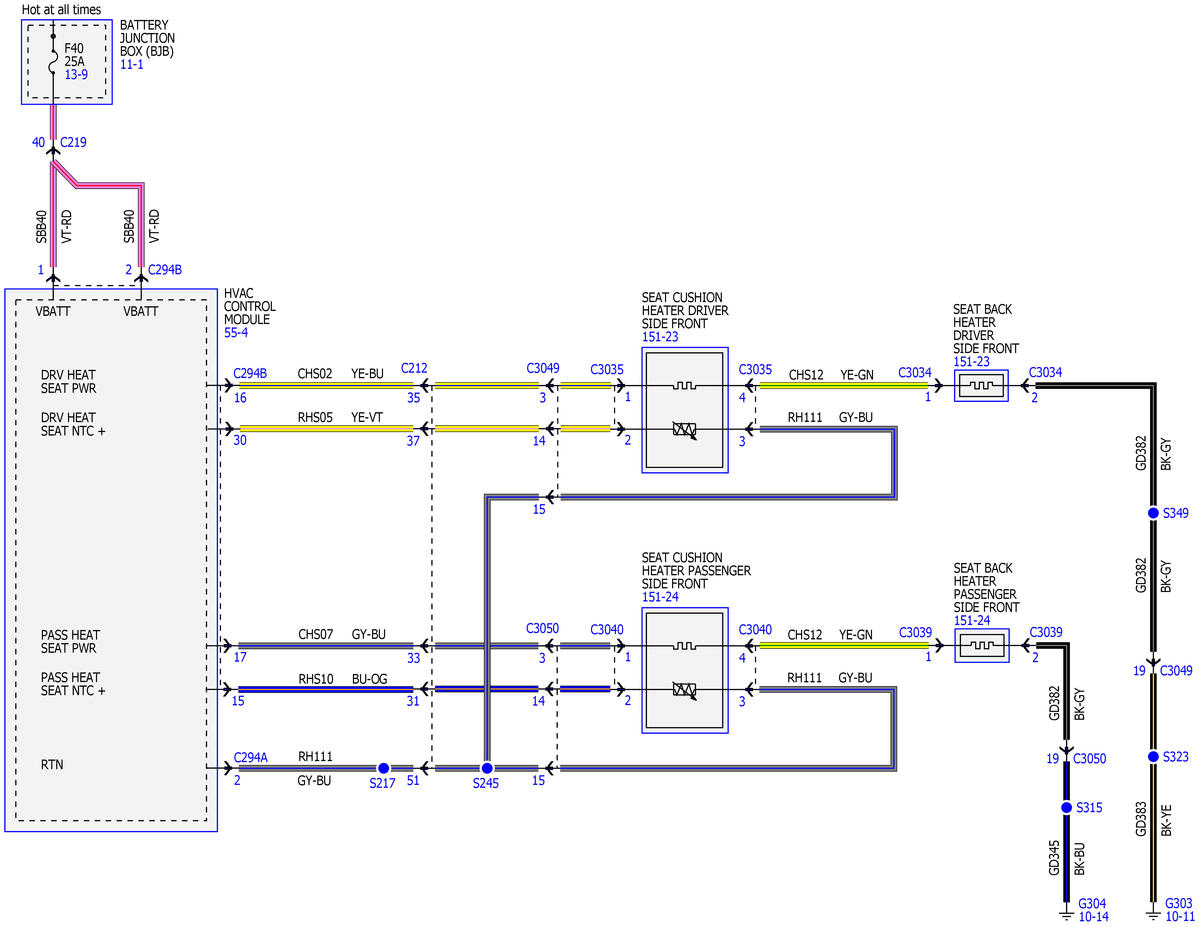

Fig 1: Climate Controlled Seats Wiring Diagram
GFDWR26969Courtesy of FORD MOTOR COMPANY
