Fuse And Relay Information

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

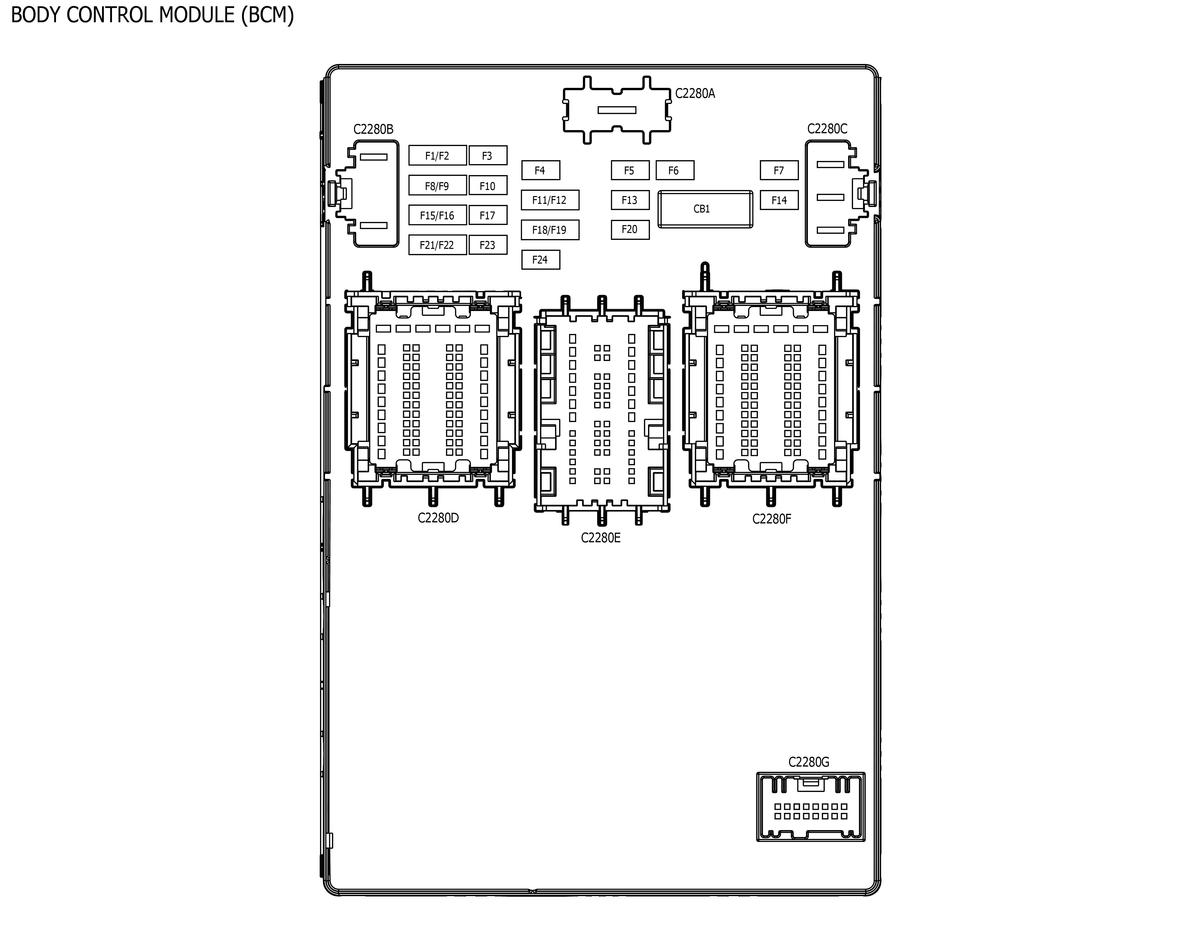

Fig 1: Fuse And Relay Information (1 Of 7)

Courtesy of FORD MOTOR COMPANY

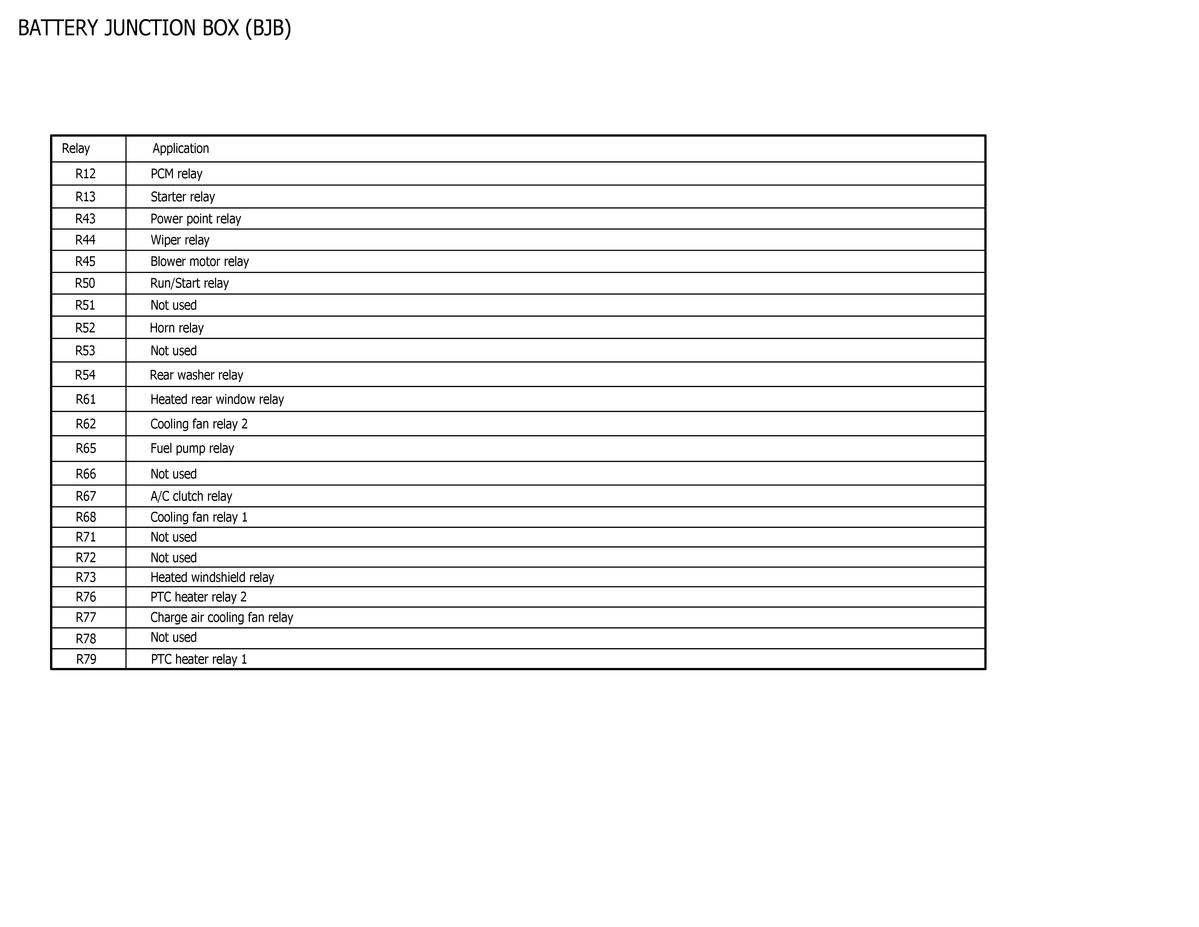

Fig 2: Fuse And Relay Information (2 Of 7)

Courtesy of FORD MOTOR COMPANY

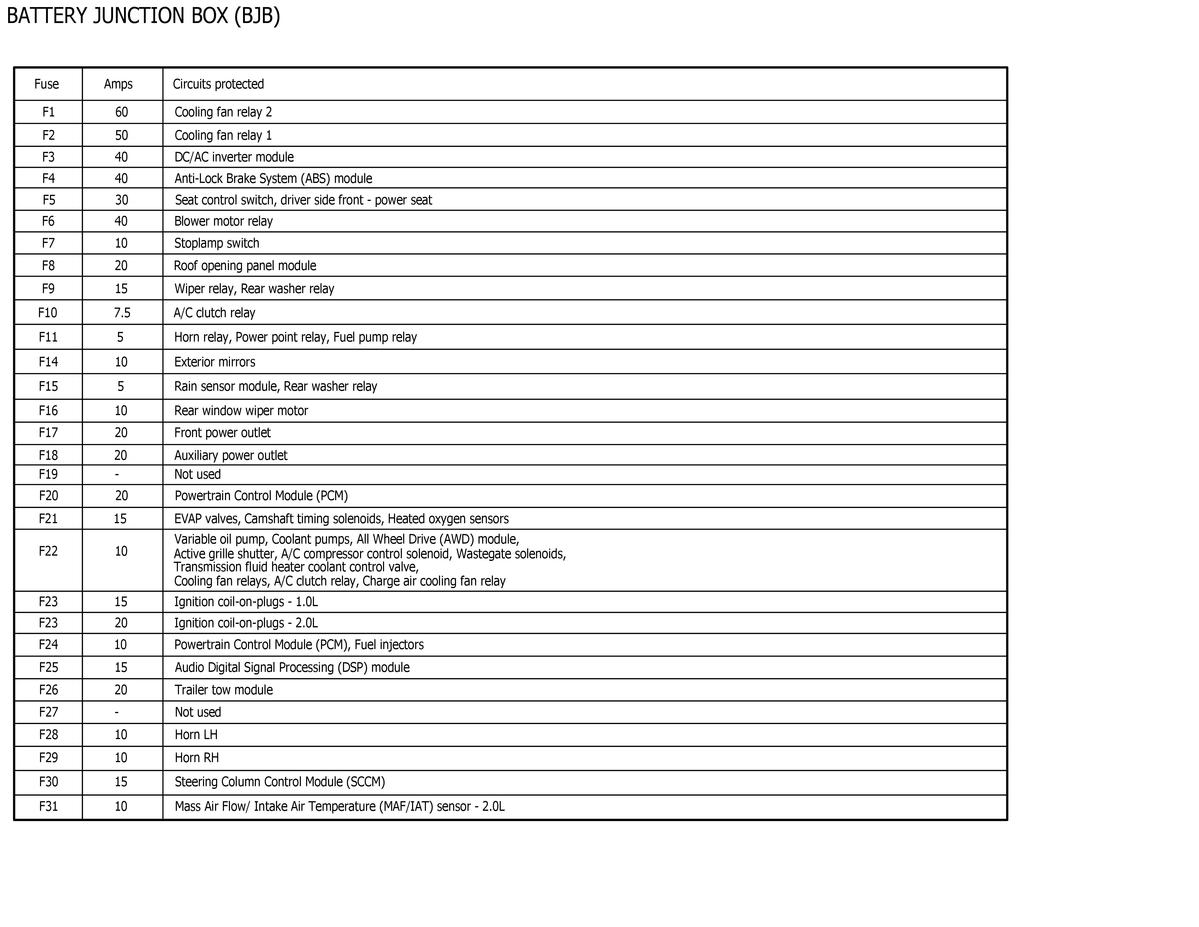

Fig 3: Fuse And Relay Information (3 Of 7)

Courtesy of FORD MOTOR COMPANY

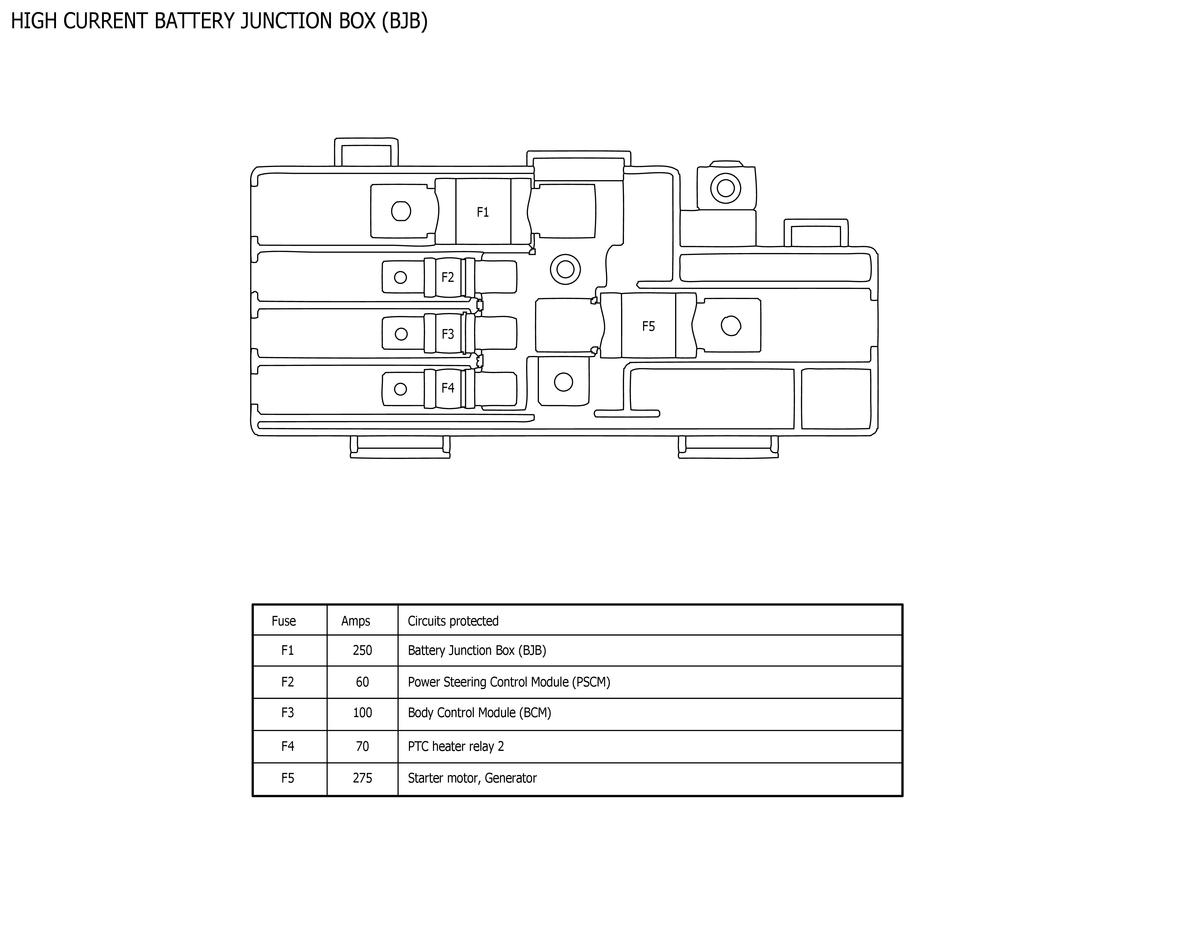

Fig 4: Fuse And Relay Information (4 Of 7)

Courtesy of FORD MOTOR COMPANY

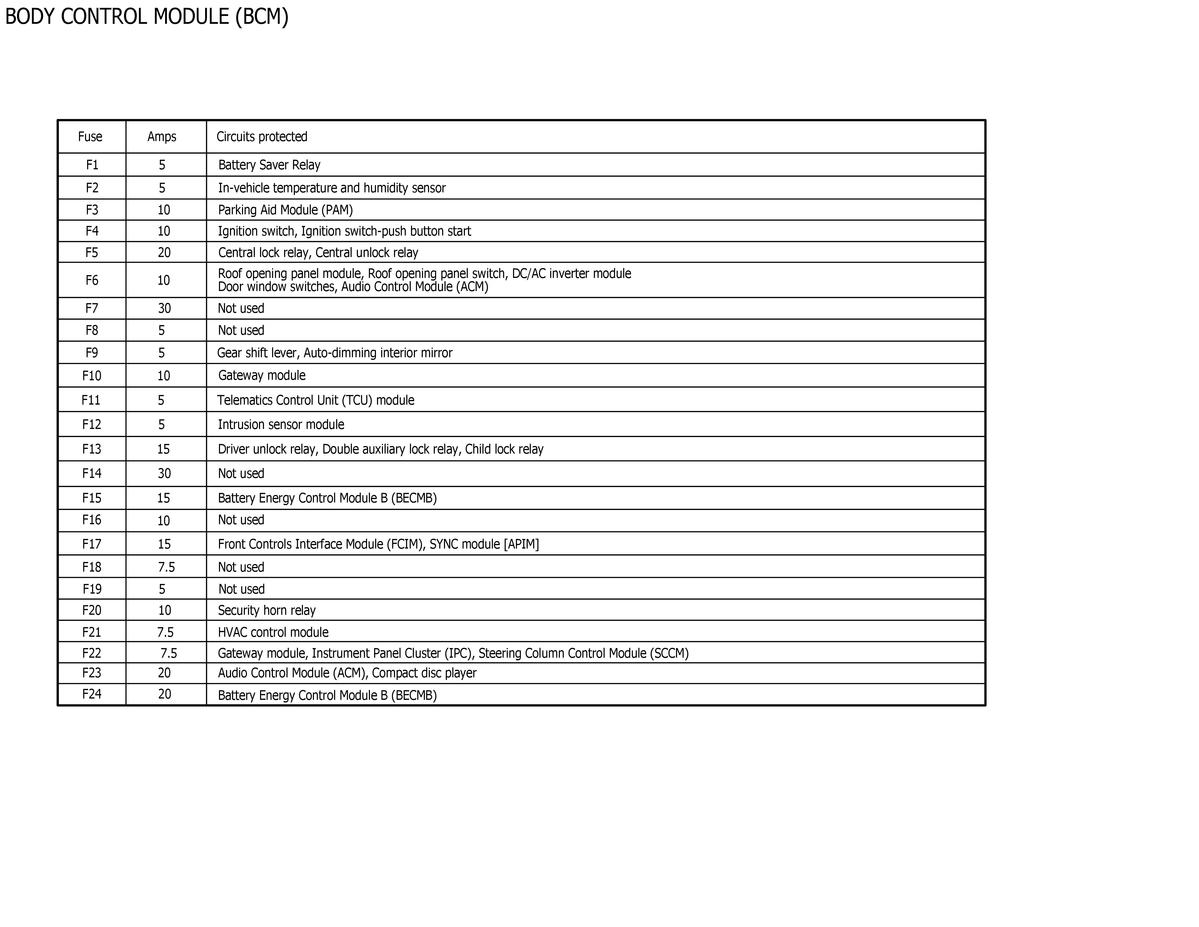

Fig 5: Fuse And Relay Information (5 Of 7)

Courtesy of FORD MOTOR COMPANY

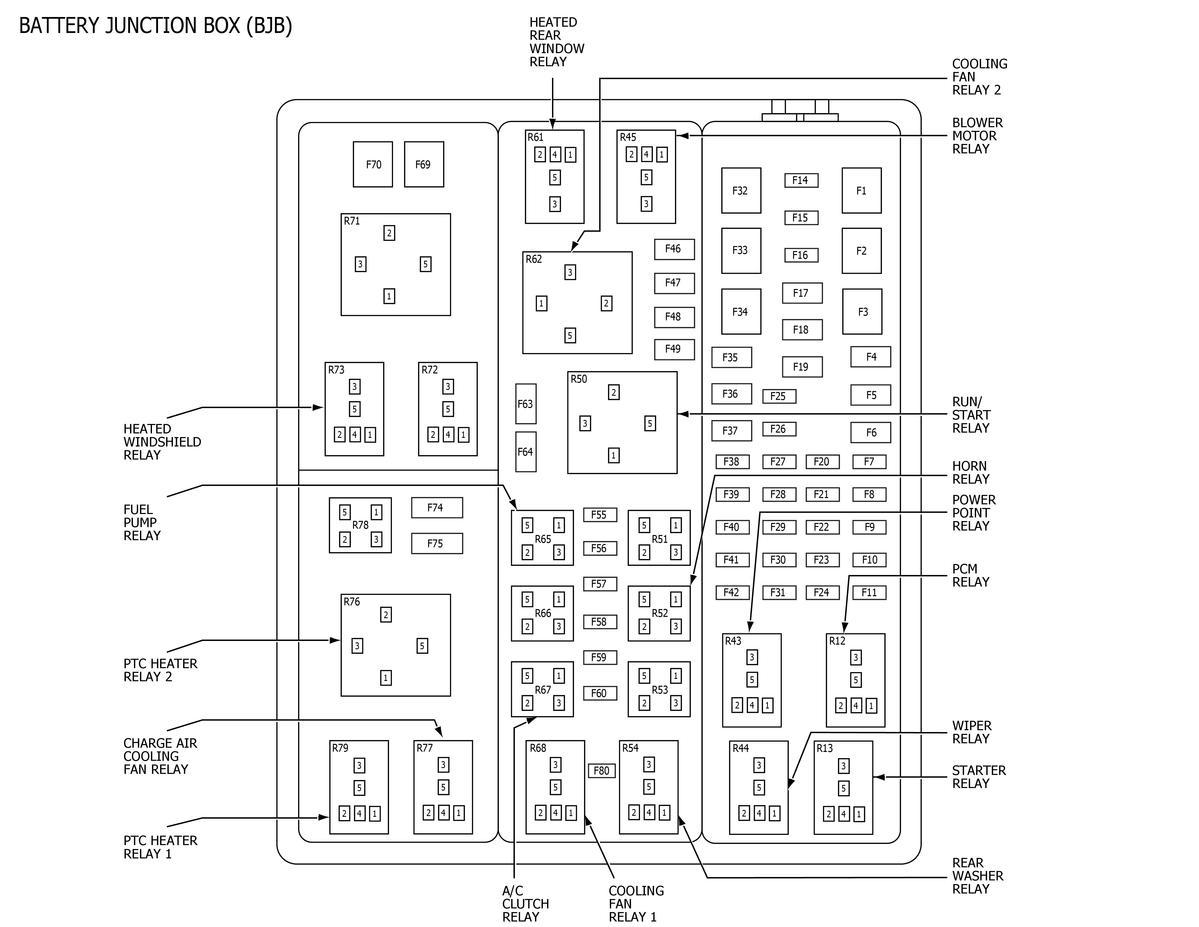

Fig 6: Fuse And Relay Information (6 Of 7)

Courtesy of FORD MOTOR COMPANY

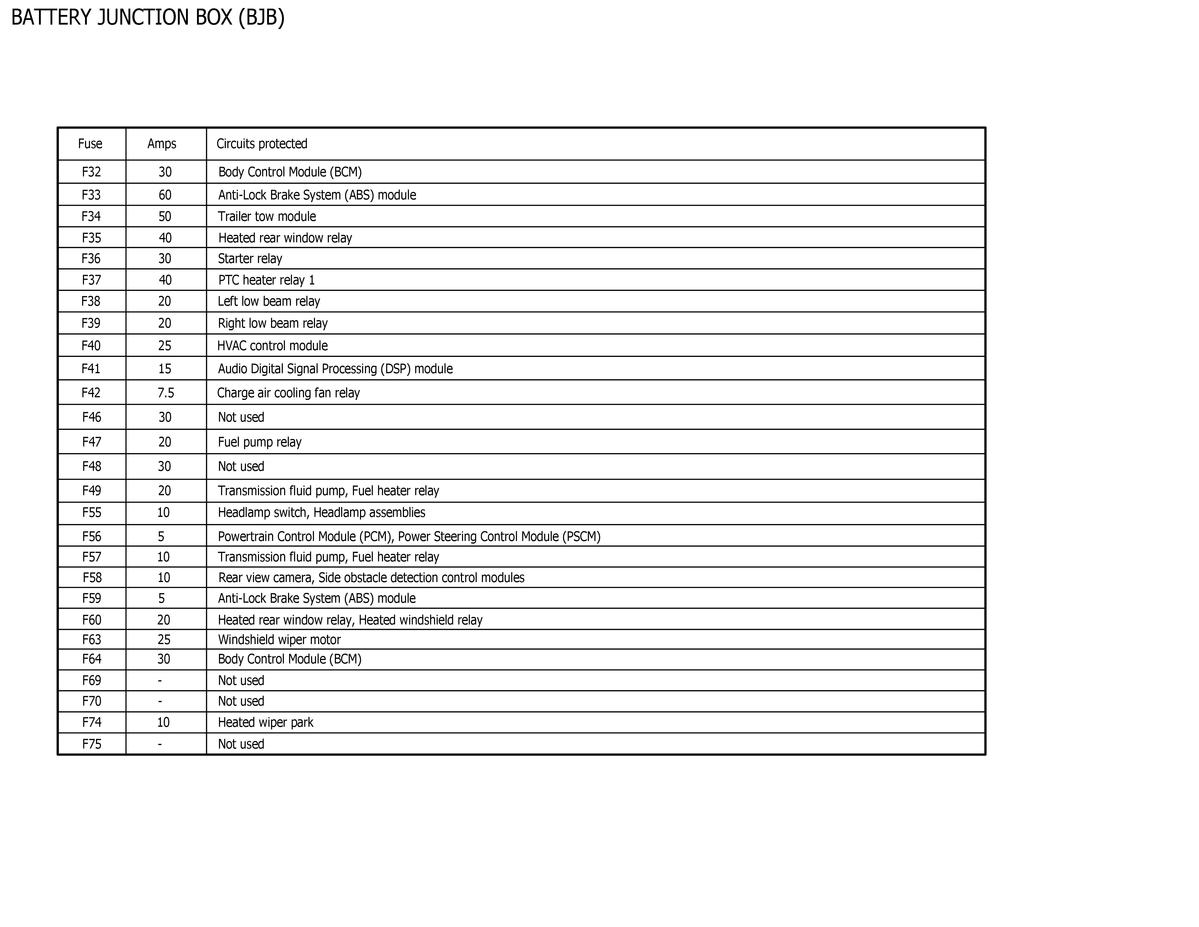

Fig 7: Fuse And Relay Information (7 Of 7)

Courtesy of FORD MOTOR COMPANY
