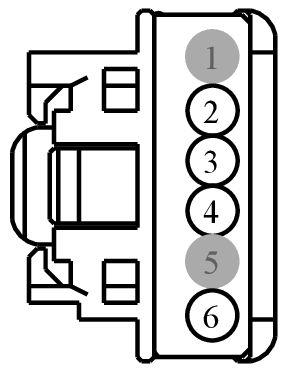

Connector End View (C9801) - PASSENGER AIRBAG DEACTIVATION (PAD) INDICATOR

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9801	PASSENGER AIRBAG DEACTIVATION (PAD) INDICATOR	14335			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3F2T-14474-SA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	CR195 (VT-GY)	22	CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER	3F2T-14474-SA
3	CR189 (BU-OG)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # ON	3F2T-14474-SA
4	CR190 (GY-BN)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # OFF	3F2T-14474-SA
5	*	*	Not Used	N/A
6	GD345 (BK-BU)	22	GROUND - PILLAR B RIGHT	3F2T-14474-SA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1242

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MJB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Indicator - Passenger Airbag Deactivation (PADI)
Sensor - EATC In Car Temperature
Switch - Multifunction
