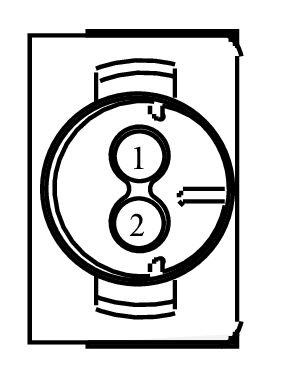

Connector End View (C9019) - PASSENGER SIDE AIR CURTAIN MODULE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C9019 |
PASSENGER SIDE AIR CURTAIN MODULE |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CR111 (BN-WH) |
20 |
CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE + |
NA |
| 2 |
RR111 (YE-VT) |
20 |
CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE - |
NA |
