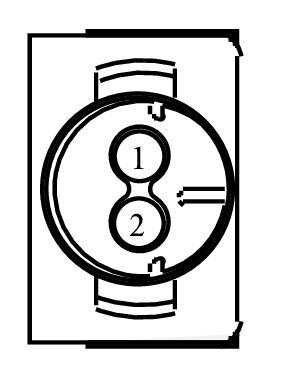

Connector End View (C9018) - DRIVER SIDE AIR CURTAIN MODULE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C9018 |
DRIVER SIDE AIR CURTAIN MODULE |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CR109 (BN-BU) |
20 |
CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE + |
NA |
| 2 |
RR109 (BU-GN) |
20 |
CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE - |
NA |
