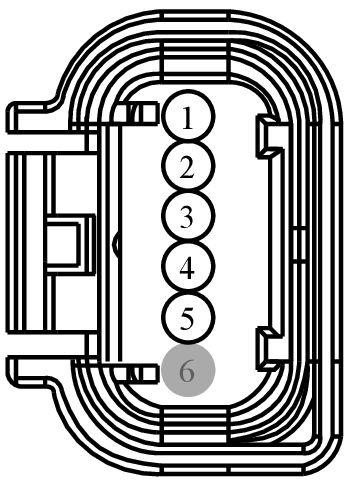

Connector End View (C4357) - REAR VIEW CAMERA
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C4357 | REAR VIEW CAMERA | 17N400 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB58 (WH-OG) | 20 | FUSE - 58 OR CIRCUIT BREAKER | 8U5T-14474-BB | ||||
| 2 | VDN14 (VT-WH) | 20 | CTRL MOD. - LIN BUS # BCM 6 | 8U5T-14474-BB | ||||
| 3 | RMP19 (BN-VT) | 20 | CAMERA - PARKING AID REAR VIDEO - | 8U5T-14474-BB | ||||
| 4 | VMP19 (WH-GN) | 20 | CAMERA - PARKING AID REAR VIDEO + | 8U5T-14474-BB | ||||
| 5 | DMP19 (BK) | 20 | CAMERA - PARKING AID REAR VIDEO D | 8U5T-14474-BB | ||||
| 6 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1556
Service Part Number:
CU2Z-14S411-AEB
Gauge:
20
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Front
- Camera - Reverse Park Aid
Pigtail Kit Part Number WPT-1280
Service Part Number:
CU2Z-14S411-AEA
Gauge:
20
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Reverse Park Aid
