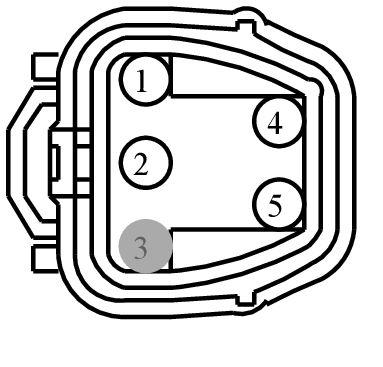

Connector End View (C4330) - FUEL PUMP ASSEMBLY
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C4330 | FUEL PUMP ASSEMBLY | 14A005 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3L8T-14474-CA | Not Available | |
| 5L8T-14474-BA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | RMC32 (YE-VT) | 22 | CTRL MOD. - SENSOR FUEL LEVEL | 3L8T-14474-CA | ||||
| 2 | VMC11 (YE-VT) | 22 | SENSOR - FUEL LEVEL (FLI) | 3L8T-14474-CA | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | RE515 (WH-BN) | 12 | DRIVER - FUEL PUMP MOTOR (FPDM) - | 5L8T-14474-BA | ||||
| 5 | CE515 (YE-OG) | 12 | DRIVER - FUEL PUMP MOTOR (FPDM) + | 5L8T-14474-BA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-909
Service Part Number:
8U2Z-14S411-NA
Gauge:
14
Pin material:
Tin
Cavities:
5
Vehicle Uses:
- Control - Engine Air Shutoff
- Fuel Pump/Sending Unit
- Resistor - Blower Motor (Front)
