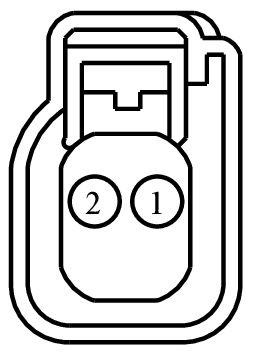

Connector End View (C4287) - EVAPORATIVE EMISSION (EVAP) VAPOR BLOCKING VALVE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C4287 | EVAPORATIVE EMISSION (EVAP) VAPOR BLOCKING VALVE | 14A005 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-AEA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE420 (GY-VT) | 18 | CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE (VAPOR BLOCKING - EVAPS) (VMV-CC) | 97BG-14474-AEA | ||||
| 2 | CBB21 (BN-WH) | 18 | FUSE - 21 OR CIRCUIT BREAKER | 97BG-14474-AEA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1243
Service Part Number:
3U2Z-14S411-RPC
Gauge:
16
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - RH - Rear
- Handle - Decklid
- Lamp - Headlamp - High/Low Beam
- Lamp - Headlamp - Low Beam
- Lamp - License
- Lamp - Rear Turn
- Lamp - Side Marker
- Sensor - Knock
- Sensor - Seat Track Position
- Sensor - Throttle Position
- Sensor - Turbine Shaft Speed
- Sensor - Water in Fuel
- Switch - Deck Lid / Lift Gate Ajar
- Switch - Door Ajar / Interior Lamp
- Switch - Hood Ajar
- Switch - Lift Gate Glass Ajar
- Switch - Stop Lamp
- Valve - Vapor Management
