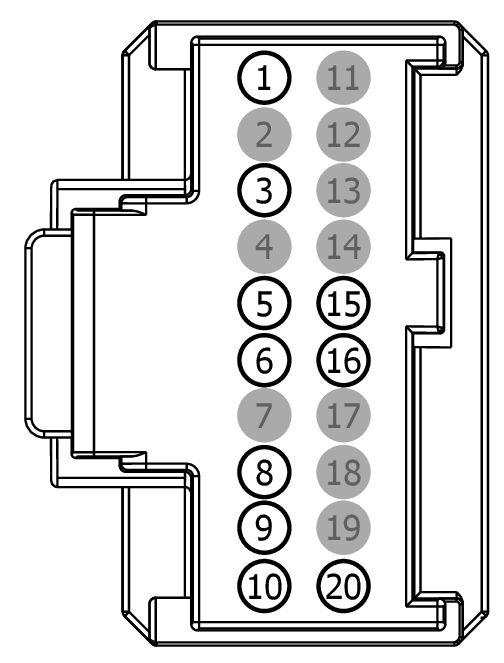

Connector End View (C4014) - PARKING AID MODULE (PAM)

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4014	PARKING AID MODULE (PAM)	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64
FU5T-14474-LB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP03 (BU-RD)	20	FUSE - 3 OR CIRCUIT BREAKER	9U5T-14474-DB
2	*	*	Not Used	N/A
3	LMP07 (BU-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR +	FU5T-14474-LB
4	*	*	Not Used	N/A
5	VMP17 (YE-OG)	22	SENSOR - PARKING AID # REAR # (RIGHT OUTER)	FU5T-14474-LB
6	VMP14 (WH-OG)	22	SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE)	FU5T-14474-LB
7	*	*	Not Used	N/A
8	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	FU5T-14474-LB
9	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	FU5T-14474-LB
10	RMP07 (GN-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR -	FU5T-14474-LB
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	VMP16 (YE-GY)	22	SENSOR - PARKING AID # REAR # (RIGHT INNER)	FU5T-14474-LB
16	VMP15 (YE-GN)	22	SENSOR - PARKING AID # REAR # (LEFT OUTER)	FU5T-14474-LB
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	GD347 (BK-GN)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT	FU5T-14474-LB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1447

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ATA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Camera - Reverse Park Aid
Module - Image Processing
Radio - Amplifier
