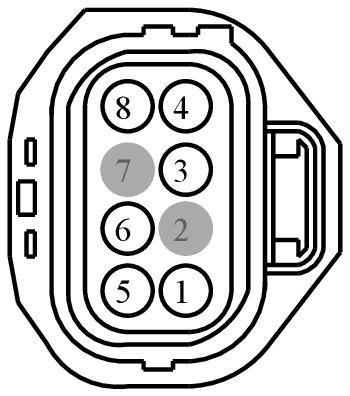

Connector End View (C3841) - ALL WHEEL DRIVE (AWD) MODULE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3841 |
ALL WHEEL DRIVE (AWD) MODULE |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 97BG-14474-BDA |
DU2Z-14474-FA |
2.8 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBB22 (YE-VT) |
20 |
FUSE - 22 OR CIRCUIT BREAKER |
97BG-14474-BDA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
VCF35 (GN) |
22 |
CTRL MOD. - POWERTRAIN # ALL WHEEL DRIVE COMMAND (AWDC) |
97BG-14474-BDA |
| 4 |
GD345 (BK-BU) |
20 |
GROUND - PILLAR B RIGHT |
97BG-14474-BDA |
| 5 |
CCF21 (VT-WH) |
20 |
CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTELLIGENT TORQUE CONTROL COUPLING SOLENOID + |
97BG-14474-BDA |
| 6 |
VCF34 (WH) |
22 |
CTRL MOD. - ALL WHEEL DRIVE # MONITOR (AWDM) |
97BG-14474-BDA |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
RCF21 (WH-VT) |
20 |
CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTELLIGENT TORQUE CONTROL COUPLING SOLENOID - |
97BG-14474-BDA |
