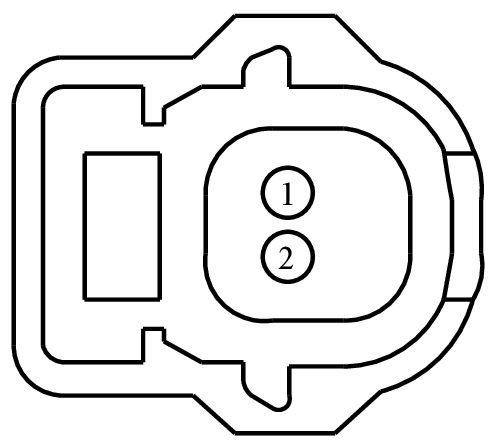

Connector End View (C3837) - SEAT TRACK POSITION SENSOR DRIVER SIDE FRONT
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3837 | SEAT TRACK POSITION SENSOR DRIVER SIDE FRONT | 14D231 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-CA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD383 (BK-WH) | 20 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT | EU5T-14474-CA | ||||
| 2 | VR215 (YE-VT) | 20 | SENSOR - SEAT TRACK POSITION DRIVER | EU5T-14474-CA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1314
Service Part Number:
8U2Z-14S411-AAC
Gauge:
20
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Sensor - Crash (Engine Compartment)
- Sensor - Seat Track Position
- Sensor - Side Impact
- Solenoid - Down Shift
- Solenoid - Torque Control Coupling
- Valve - Heated PCV
- Valve - Heater Core Shut Off
- Valve - Transmission Fluid Warmer
