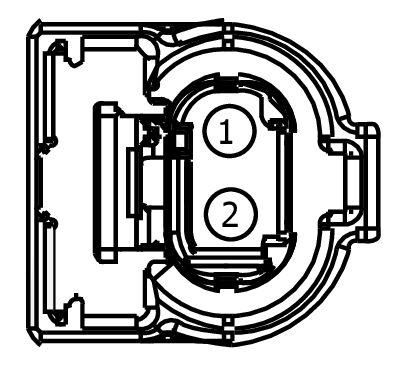

Connector End View (C3209) - SIDE IMPACT SENSOR SECOND ROW LH
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3209 | SIDE IMPACT SENSOR SECOND ROW LH | 14A005 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-DAB | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VR219 (GN-WH) | 20 | SENSOR - SIDE IMPACT ROW 2 DRIVER SIDE | EU5T-14474-DAB | ||||
| 2 | RR133 (GY-BN) | 20 | CTRL MOD. - SENSOR SIDE IMPACT ROW 2 DRIVER SIDE - | EU5T-14474-DAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1469
Service Part Number:
GU2Z-14S411-KA
Gauge:
18
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Sensor - Side Impact
- Sensor - Transfer Case Temperature
- Sensor - Transmission Fluid Temperature
- Solenoid - Variable Oil Pump Control
