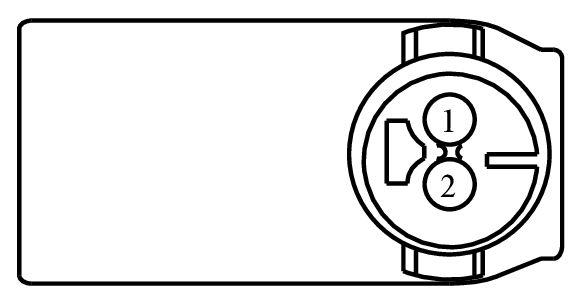

Connector End View (C3201) - SAFETY BELT RETRACTOR PRETENSIONER LH
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3201 | SAFETY BELT RETRACTOR PRETENSIONER LH | 14A005 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR188 (VT-GN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT DRIVER SIDE + | NA | ||||
| 2 | RR188 (WH-BN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT DRIVER SIDE - | NA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1225
Service Part Number:
BU2Z-14S411-BHA
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses:
- Airbag - Side Curtain
- Pretensioner - Seat Belt (Driver)
- Pretensioner - Seat Belt (Passenger)
- Sensor - Side Impact
- Squib - Airbag (Driver)
- Squib - Airbag (Passenger)
