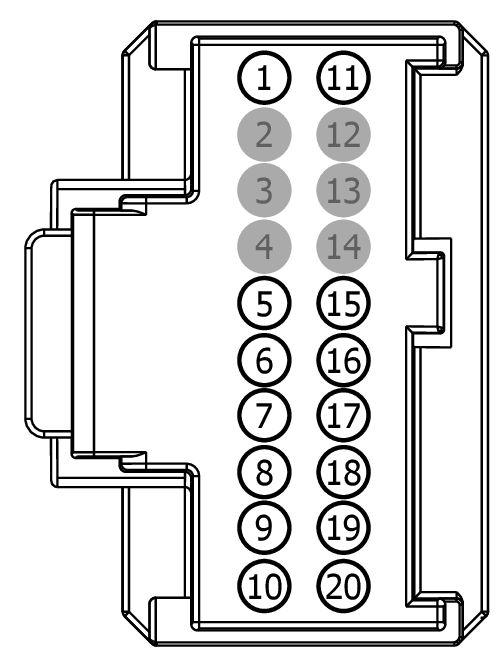

Connector End View (C3154A) - AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3154A | AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE | 14A005 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| FU5T-14474-LB | DU2Z-14474-AA | 0.64 |
| 9U5T-14474-EB | DU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VDB29 (GN-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH | FU5T-14474-LB | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | RME02 (YE) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 - | 9U5T-14474-EB | ||||
| 6 | RME10 (WH-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) - | 9U5T-14474-EB | ||||
| 7 | RME07 (WH-BN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) - | 9U5T-14474-EB | ||||
| 8 | RME12 (GY-BU) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) - | 9U5T-14474-EB | ||||
| 9 | RME73 (VT-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 2 - | 9U5T-14474-EB | ||||
| 10 | RME09 (BN-YE) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) - | 9U5T-14474-EB | ||||
| 11 | VDB30 (WH-GN) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW | FU5T-14474-LB | ||||
| 12 | * | * | Not Used | N/A | ||||
| 13 | * | * | Not Used | N/A | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | VME02 (VT) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 + | 9U5T-14474-EB | ||||
| 16 | VME10 (WH-VT) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) + | 9U5T-14474-EB | ||||
| 17 | VME07 (WH) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) + | 9U5T-14474-EB | ||||
| 18 | VME12 (GN-WH) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) + | 9U5T-14474-EB | ||||
| 19 | VME73 (WH-BN) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 2 + | 9U5T-14474-EB | ||||
| 20 | VME09 (WH-RD) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) + | 9U5T-14474-EB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1447
Service Part Number:
FU2Z-14S411-ATA
Gauge:
20
Pin material:
Tin
Cavities:
20
Vehicle Uses:
- Camera - Reverse Park Aid
- Module - Image Processing
- Radio - Amplifier
