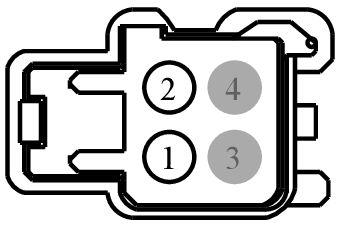

Connector End View (C3039) - SEAT BACK HEATER PASSENGER SIDE FRONT
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3039 | SEAT BACK HEATER PASSENGER SIDE FRONT | 14D230 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-ABB | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CHS12 (YE-GN) | 16 | HEATER - PASSENGER CUSHION / BACK | 97BG-14421-ABB | ||||
| 2 | GD382 (BK-GY) | 16 | GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT | 97BG-14421-ABB | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1456
Service Part Number:
GU2Z-14S411-FA
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Lamp - Top Finish Panel
