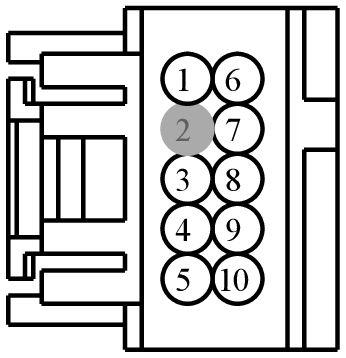

Connector End View (C2611) - COMPACT DISC PLAYER
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2611 | COMPACT DISC PLAYER | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | SBP23 (WH-RD) | 16 | FUSE - 23 OR CIRCUIT BREAKER | N/A | ||||
| 2 | - () | * | Not Used | N/A | ||||
| 3 | VMEB9 (GN-WH) | 22 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR TWEETER 2 + | N/A | ||||
| 4 | RMEB9 (WH-BN) | 22 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR TWEETER 2 - | N/A | ||||
| 5 | DMEA9 (*) | 22 | CTRL MOD. - REMOTE CD # AUDIO D | N/A | ||||
| 6 | VDB29 (GN-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH | N/A | ||||
| 7 | VDB30 (WH-GN) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW | N/A | ||||
| 8 | VMEA9 (BU-GY) | 22 | CTRL MOD. - REMOTE CD # AUDIO LEFT + | N/A | ||||
| 9 | RMEA9 (VT-BN) | 22 | CTRL MOD. - REMOTE CD # AUDIO LEFT - | N/A | ||||
| 10 | GD266 (BK-WH) | 20 | GROUND - STEERING COLUMN BRACKET # 2ND POINT | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-934
Service Part Number:
3U2Z-14S411-LSB
Gauge:
18
Pin material:
Silver
Cavities:
10
Vehicle Uses:
- Lamp - Headlamp Switch
- Module - Lighting Control
- Module - Reverse Park Aid (RPA)
- Module - Seat Memory
- Radio
- Switch - Headlamp
- Switch - Headlamp / Foglamp
- Switch - Multifunction
- Switch - Power Window - Driver
- Switch - Turn Signal
Pigtail Kit Part Number WPT-1592
Service Part Number:
3U2Z-14S411-LSC
Gauge:
18
Pin material:
Silver
Cavities:
10
Vehicle Uses:
- Connector - Inline
- Control - Navigation Display
- DVD Player
- Mirror - Sideview
- Mirror - Sideview / Heated
- Module - Front Park Aid
- Module - Lighting Control
- Module - Reverse Park Aid (RPA)
- Module - Seat Memory
- Monitor - Video/DVD
- Radio
- Switch - 4x4 Control
- Switch - Headlamp
- Switch - Headlamp / Foglamp
- Switch - Heated Seat - LH - Front
- Switch - Heated Seat - RH - Front
- Switch - Multifunction
- Switch - Power Window - Driver
- Switch - Turn Signal
