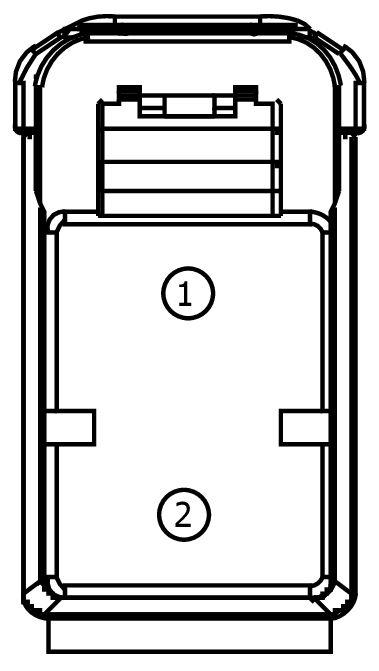

Connector End View (C2603) - PTC HEATER
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2603 |
PTC HEATER |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 93BG-14474-YAA |
Not Available |
| 96FG-14474-YAA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CHP06 (VT-GN) |
8 |
RELAY - PTC HEATER BANK 2 |
93BG-14474-YAA |
| 2 |
CHP02 (WH-OG) |
10 |
RELAY - PTC HEATER BANK 1 |
96FG-14474-YAA |
