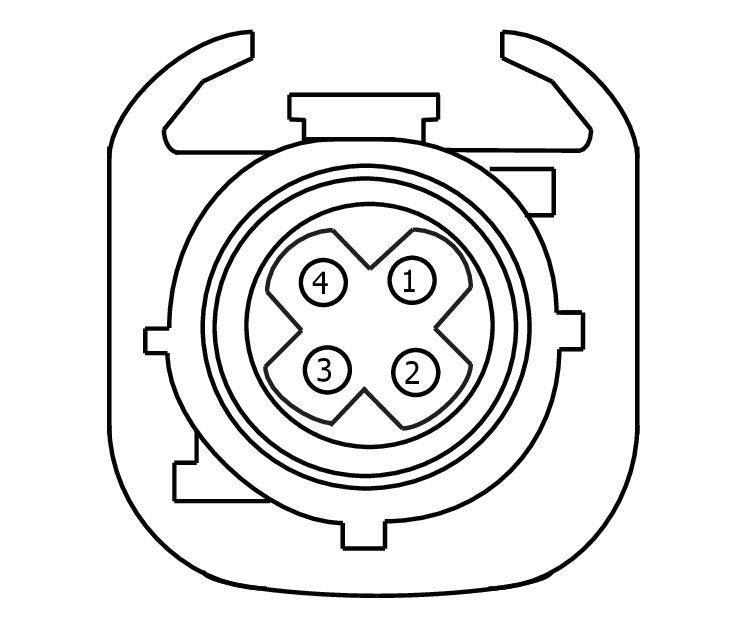

Connector End View (C2383D) - SYNC MODULE [APIM]
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2383D |
SYNC MODULE [APIM] |
PIA |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* (*) |
* |
COMMUNICATION TPA+ |
NA |
| 2 |
* (*) |
* |
POWER |
NA |
| 3 |
* (*) |
* |
COMMUNICATION TPA- |
NA |
| 4 |
* (*) |
* |
GROUND |
NA |
