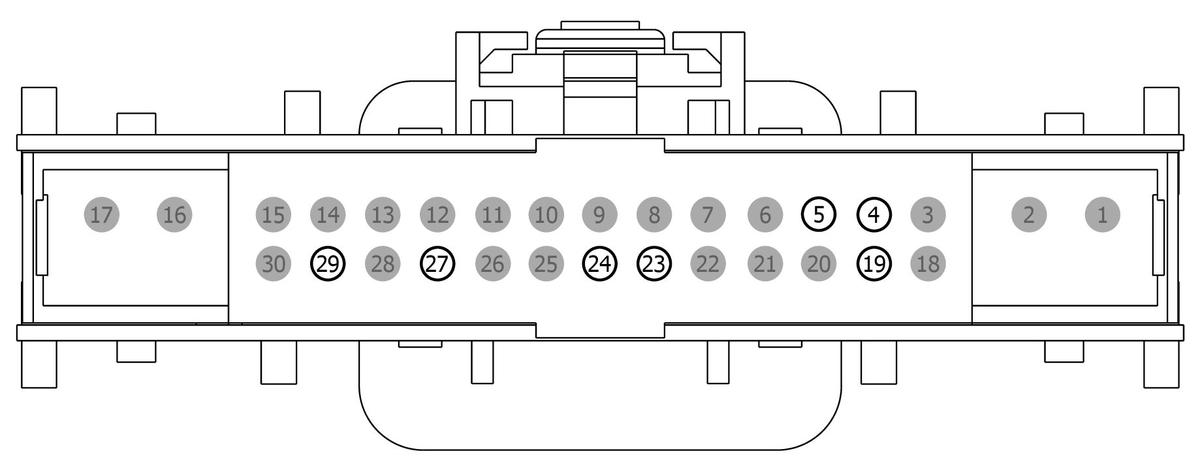

Connector End View (C2357B) - HVAC CONTROL MODULE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2357B |
HVAC CONTROL MODULE |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| FU5T-14474-LB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
VH409 (WH) |
22 |
SENSOR - DISCHARGE TEMP. # LEFT (LEFT FRONT PANEL) |
FU5T-14474-LB |
| 5 |
VH410 (GY-BU) |
22 |
SENSOR - DISCHARGE TEMP. # LEFT 2ND (LEFT FRONT FLOOR) |
FU5T-14474-LB |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
VH413 (WH-BU) |
22 |
SENSOR - HUMIDITY |
FU5T-14474-LB |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
* |
* |
Not Used |
N/A |
| 22 |
* |
* |
Not Used |
N/A |
| 23 |
CE937 (VT-GY) |
22 |
SWITCH - START/STOP DISABLE |
FU5T-14474-LB |
| 24 |
CE469 (BN) |
22 |
CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR |
FU5T-14474-LB |
| 25 |
* |
* |
Not Used |
N/A |
| 26 |
* |
* |
Not Used |
N/A |
| 27 |
RH103 (GY) |
22 |
CTRL MOD. - CLIMATE # I.T.S. ASPIRATOR MOTOR - |
FU5T-14474-LB |
| 28 |
* |
* |
Not Used |
N/A |
| 29 |
VH414 (GN-BU) |
22 |
SENSOR - INCAR TEMP. |
FU5T-14474-LB |
| 30 |
* |
* |
Not Used |
N/A |
