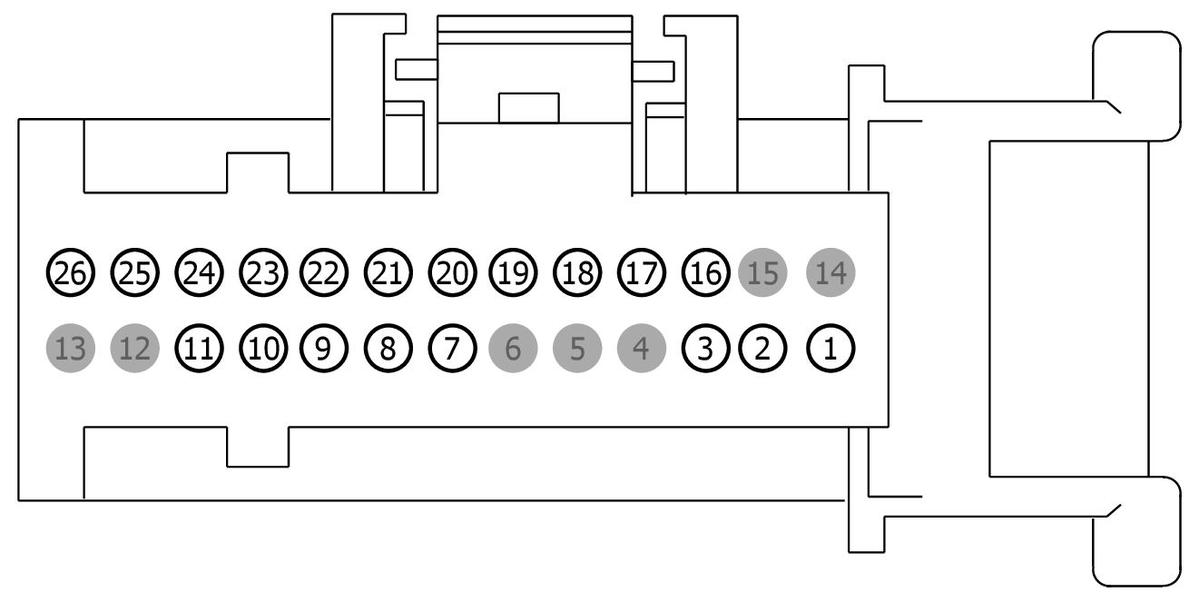

Connector End View (C2357A) - HVAC CONTROL MODULE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2357A |
HVAC CONTROL MODULE |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| FU5T-14474-LB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
GD265 (BK) |
20 |
GROUND - STEERING COLUMN BRACKET |
9U5T-14474-DB |
| 2 |
RH111 (GY-BU) |
22 |
CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS |
FU5T-14474-LB |
| 3 |
LH111 (BN-WH) |
22 |
CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS |
FU5T-14474-LB |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
CRD02 (BU-GY) |
22 |
CTRL MOD. - RELAY HEATER REAR WINDOW |
FU5T-14474-LB |
| 8 |
CH239 (BU-WH) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2 / OPEN (IF PLUS) |
FU5T-14474-LB |
| 9 |
CH238 (YE-OG) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1 / CLOSE (IF PLUS) |
FU5T-14474-LB |
| 10 |
CH440 (BU-BN) |
22 |
SENSOR - DOOR POSITION TEMP. DRIVER |
FU5T-14474-LB |
| 11 |
CH123 (VT-GN) |
22 |
CTRL MOD. - BLOWER MOTOR RELAY |
FU5T-14474-LB |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
VH438 (GN-VT) |
22 |
SENSOR - DOOR POSITION RECIRC. |
FU5T-14474-LB |
| 17 |
VDB06 (GY-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
FU5T-14474-LB |
| 18 |
VDB07 (VT-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
FU5T-14474-LB |
| 19 |
VH406 (VT-BN) |
22 |
SENSOR - A/C EVAPORATOR TEMPERATURE (ACET) |
FU5T-14474-LB |
| 20 |
CH202 (BU-GN) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1 / FLOOR (IF PLUS) |
FU5T-14474-LB |
| 21 |
CH203 (GN-BN) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 2 / PANEL (IF PLUS) |
FU5T-14474-LB |
| 22 |
VH436 (YE-VT) |
22 |
SENSOR - DOOR POSITION DEFROST |
FU5T-14474-LB |
| 23 |
VH101 (WH-VT) |
20 |
CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL |
9U5T-14474-DB |
| 24 |
CH208 (GN-VT) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS) |
FU5T-14474-LB |
| 25 |
CH207 (BU-GY) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS) |
FU5T-14474-LB |
| 26 |
SBP21 (GY-RD) |
20 |
FUSE - 21 OR CIRCUIT BREAKER |
9U5T-14474-DB |
