Connector End View (C2280F) - BODY CONTROL MODULE (BCM)

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C2280F BODY CONTROL MODULE (BCM) 14A005 part# N/A Not Available

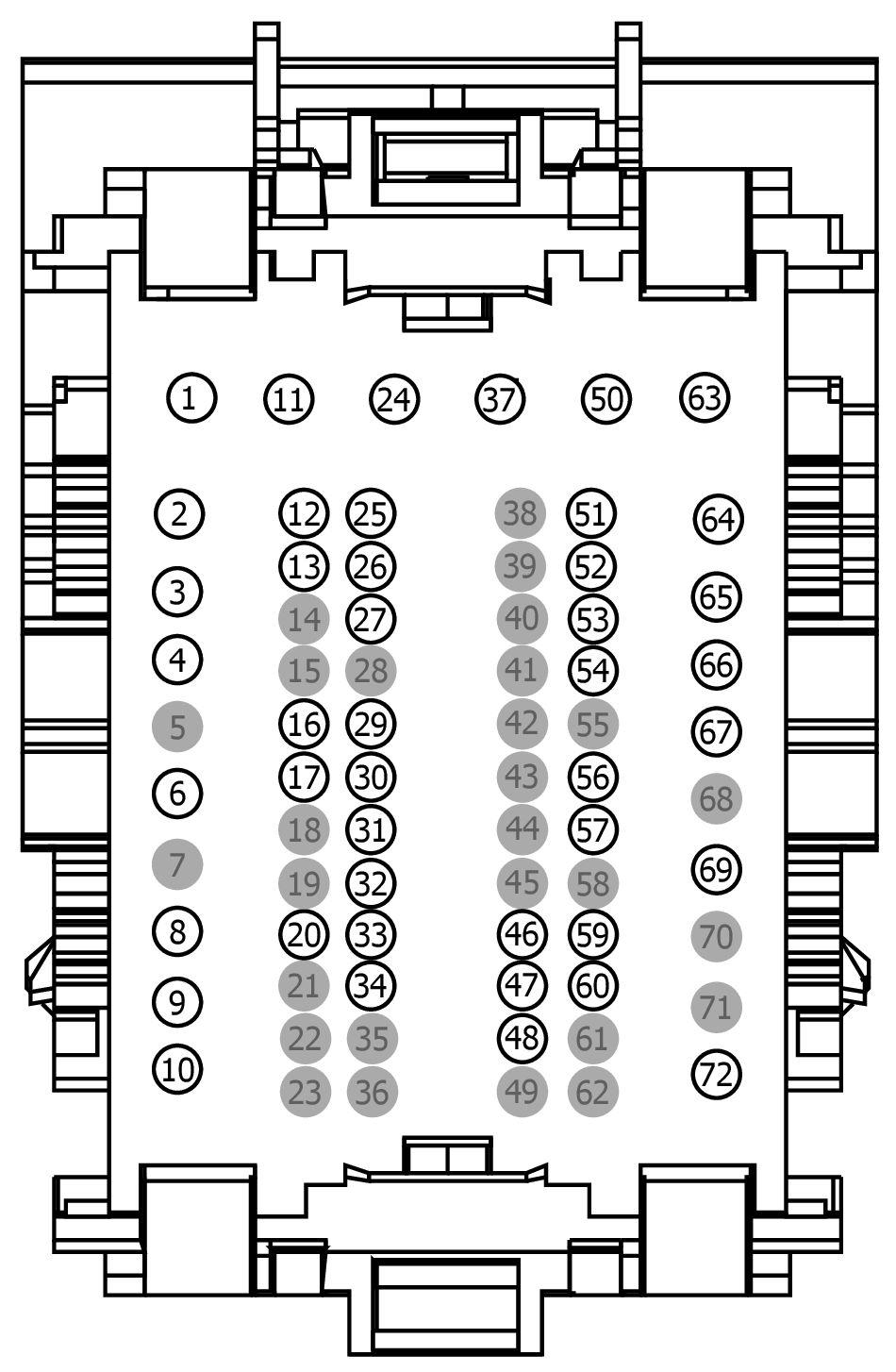

GFDWR26799Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
F8VB-14474-AA EU2Z-14474-AB 2.8
97BG-14474-ABB DU2Z-14474-DA 1.5
97BG-14474-AAB DU2Z-14474-DA 1.5
8U5T-14474-BB DU2Z-14474-CA 0.64
F8VB-14474-BA EU2Z-14474-AA 2.8
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CPL11 (GY-BN) 14 CTRL MOD. - DOOR LOCK # ALL LOCK F8VB-14474-AA
2 CBP06 (WH-BU) 16 FUSE - 6 OR CIRCUIT BREAKER 97BG-14474-ABB
3 SBP03 (BU-RD) 20 FUSE - 3 OR CIRCUIT BREAKER 97BG-14474-AAB
4 CBX07 (GN-RD) 18 POWER - CTRL MOD. AMBIENT LIGHTING 97BG-14474-ABB
5 * * Not Used N/A
6 CLS23 (GY-OG) 22 CTRL MOD. - TURN LAMP LEFT REAR 97BG-14474-AAB
7 * * Not Used N/A
8 GD356 (BK-VT) 20 GROUND - ROCKER PANEL FRONT RIGHT 97BG-14474-AAB
9 GD356 (BK-VT) 20 GROUND - ROCKER PANEL FRONT RIGHT 97BG-14474-AAB
10 CPL10 (GN-WH) 20 CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID RELEASE 97BG-14474-AAB
11 CPL13 (BN-GN) 14 CTRL MOD. - DOOR LOCK # ALL UNLOCK F8VB-14474-AA
12 CLS51 (WH-GN) 22 CTRL MOD. - STOP/TURN LEFT OUTBOARD 8U5T-14474-BB
13 CR167 (YE-VT) 22 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) 8U5T-14474-BB
14 * * Not Used N/A
15 * * Not Used N/A
16 CPL44 (YE-OG) 22 SWITCH - LIFTGATE/DECKLID/CARGO # AJAR 8U5T-14474-BB
17 VLN33 (GY-VT) 20 CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) 8U5T-14474-BB
18 * * Not Used N/A
19 * * Not Used N/A
20 CPK14 (BU-OG) 22 SWITCH - CENTRAL UNLOCK DRIVER 8U5T-14474-BB
21 * * Not Used N/A
22 * * Not Used N/A
23 * * Not Used N/A
24 GD345 (BK-YE) 14 GROUND - PILLAR B RIGHT F8VB-14474-AA
25 CPL42 (GY-YE) 22 SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK 8U5T-14474-BB
26 CPL29 (YE-GY) 22 SWITCH - LATCH DRIVER # SET 8U5T-14474-BB
27 CPL28 (VT-GN) 22 SWITCH - LATCH DRIVER # RESET 8U5T-14474-BB
28 * * Not Used N/A
29 CPL26 (GN-VT) 22 SWITCH - LATCH DRIVER # AJAR 8U5T-14474-BB
30 CMC25 (WH-VT) 20 SWITCH - PARKING BRAKE 8U5T-14474-BB
31 CPR63 (GY-YE) 20 SWITCH - POWER LIFTGATE/DECKLID # OPEN/CLOSE 8U5T-14474-BB
32 CPL31 (WH) 22 SWITCH - LATCH PASSENGER # AJAR 8U5T-14474-BB
33 CPL36 (GN) 22 SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR) 8U5T-14474-BB
34 CPL39 (YE) 22 SWITCH - LATCH REAR PASSENGER SIDE # AJAR (INCL.SLIDING DOOR) 8U5T-14474-BB
35 * * Not Used N/A
36 * * Not Used N/A
37 CPL69 (YE-VT) 18 SWITCH - LATCH REAR DRIVER SIDE # CHILD LOCK FEEDBACK child lockout F8VB-14474-BA
38 * * Not Used N/A
39 * * Not Used N/A
40 * * Not Used N/A
41 * * Not Used N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 * * Not Used N/A
45 * * Not Used N/A
46 CPL70 (WH-GN) 22 SWITCH - LATCH REAR PASSENGER SIDE # CHILD LOCK FEEDBACK child lockout 8U5T-14474-BB
47 CPL69 (WH-GN) 22 SWITCH - LATCH REAR DRIVER SIDE # CHILD LOCK FEEDBACK child lockout 8U5T-14474-BB
48 CLS09 (WH-OG) 22 CTRL MOD. - PARK REAR RIGHT 8U5T-14474-BB
49 * * Not Used N/A
50 CPL12 (VT-OG) 18 CTRL MOD. - DOOR LOCK # DOUBLE LOCK ALL LOCK F8VB-14474-BA
51 CLS53 (GY-VT) 22 CTRL MOD. - STOP/TURN RIGHT OUTBOARD 8U5T-14474-BB
52 CLS05 (YE-VT) 20 CTRL MOD. - PARK 8U5T-14474-BB
53 CLS08 (VT-GN) 22 CTRL MOD. - PARK REAR LEFT 8U5T-14474-BB
54 VDN02 (GN-OG) 22 CTRL MOD. - LIN BUS # BCM 2 8U5T-14474-BB
55 * * Not Used N/A
56 CPW01 (BU-GY) 22 CTRL MOD. - POWER WINDOW GLOBAL SET + 8U5T-14474-BB
57 CLS17 (YE-GY) 20 CTRL MOD. - STOP HIGH MOUNT 8U5T-14474-BB
58 * * Not Used N/A
59 VDN14 (YE-VT) 22 CTRL MOD. - LIN BUS # BCM 6 8U5T-14474-BB
60 VMC05 (VT-OG) 22 CTRL MOD. - VEHICLE SPEED OUTPUT (VSOUT) 8U5T-14474-BB
61 * * Not Used N/A
62 * * Not Used N/A
63 CPL51 (BU-GN) 18 CTRL MOD. - DOOR LOCK # DRIVER UNLOCK F8VB-14474-BA
64 CRT34 (VT-OG) 20 RELAY - ANTI-THEFT/SECURITY HORN 97BG-14474-AAB
65 CLS27 (GN-OG) 22 CTRL MOD. - TURN LAMP RIGHT REAR 97BG-14474-AAB
66 CLS10 (GN-BN) 20 CTRL MOD. - REVERSE LEFT OR COMMON electrochromatic mirror 97BG-14474-ABB
66 CLS10 (BU-WH) 22 CTRL MOD. - REVERSE LEFT OR COMMON 97BG-14474-ABB
67 CLS37 (WH-BU) 20 CTRL MOD. - FOG LAMP REAR (RIGHT OR COMMON) 97BG-14474-AAB
68 * * Not Used N/A
69 SBP12 (GN-RD) 22 FUSE - 12 OR CIRCUIT BREAKER 97BG-14474-AAB
70 * * Not Used N/A
71 * * Not Used N/A
72 CLN09 (YE-GN) 20 RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) 97BG-14474-AAB
