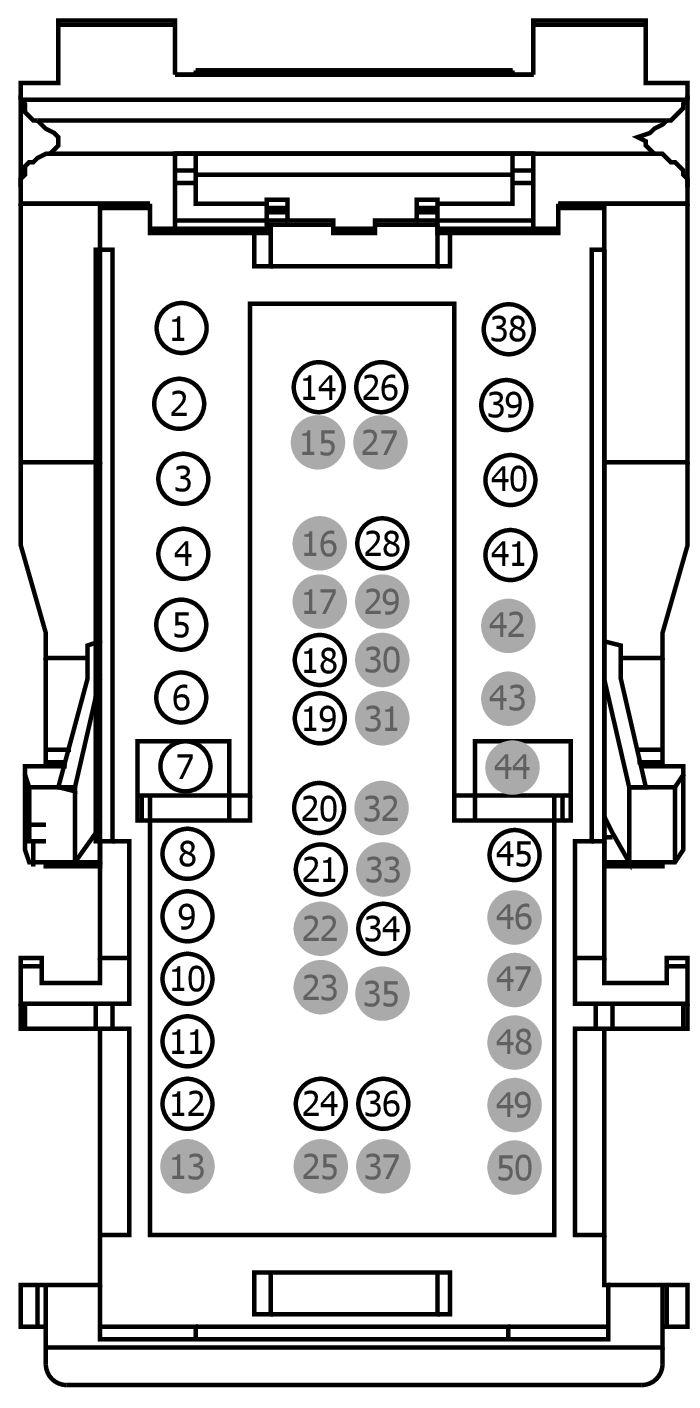

Connector End View (C2280E) - BODY CONTROL MODULE (BCM)
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2280E |
BODY CONTROL MODULE (BCM) |
12A581 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 97BG-14474-ABB |
DU2Z-14474-DA |
1.5 |
| 97BG-14474-AAB |
DU2Z-14474-DA |
1.5 |
| 8U5T-14474-BB |
DU2Z-14474-CA |
0.64 |
| 8U5T-14474-CB |
DU2Z-14474-CA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CLF04 (BN-BU) |
16 |
CTRL MOD. - BEAM LOW LEFT |
97BG-14474-ABB |
| 2 |
CLS25 (YE-VT) |
20 |
CTRL MOD. - TURN LAMP RIGHT FRONT |
97BG-14474-AAB |
| 3 |
CLS21 (BU-GN) |
20 |
CTRL MOD. - TURN LAMP LEFT FRONT |
97BG-14474-AAB |
| 4 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
97BG-14474-AAB |
| 5 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
97BG-14474-AAB |
| 6 |
CLF29 (BN) |
20 |
CTRL MOD. - FOG LAMPS FRONT (LEFT) |
97BG-14474-AAB |
| 7 |
CLF34 (BU-BN) |
20 |
CTRL MOD. - FOG LAMPS FRONT RIGHT OR COMMON |
97BG-14474-AAB |
| 8 |
CLF61 (GY-BU) |
20 |
CTRL MOD. - DAYTIME RUNNING LIGHT LEFT |
8U5T-14474-BB |
| 9 |
CLF62 (VT-WH) |
20 |
CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT |
8U5T-14474-BB |
| 10 |
CE436 (VT-OG) |
22 |
CTRL MOD. - WAKE UP PCM |
2.0L |
8U5T-14474-BB |
| 10 |
CE436 (VT-OG) |
20 |
CTRL MOD. - WAKE UP PCM |
1.0L |
8U5T-14474-BB |
| 11 |
CE261 (GY-OG) |
22 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON (FUEL_PUMP_ON) (IES) |
8U5T-14474-BB |
| 12 |
CDC43 (YE-BU) |
22 |
RELAY - ELECTRICAL STEERING COLUMN LOCK |
8U5T-14474-BB |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
CLS06 (GN-OG) |
18 |
CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT |
8U5T-14474-CB |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
CRH04 (VT-GN) |
20 |
CTRL MOD. - RELAY HORN |
8U5T-14474-BB |
| 19 |
CDC72 (BN-WH) |
22 |
CTRL MOD. - POWER OUTLET DISABLE OR RESET |
8U5T-14474-BB |
| 20 |
CDC64 (VT-WH) |
22 |
RELAY - RUN, ACCESSORY |
8U5T-14474-BB |
| 21 |
CBB34 (VT-BN) |
22 |
FUSE - 34 OR CIRCUIT BREAKER |
8U5T-14474-BB |
| 22 |
* |
* |
Not Used |
N/A |
| 23 |
* |
* |
Not Used |
N/A |
| 24 |
CE226 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + |
8U5T-14474-BB |
| 25 |
* |
* |
Not Used |
N/A |
| 26 |
CPL25 (BU-OG) |
20 |
SWITCH - HOOD # AJAR |
8U5T-14474-BB |
| 27 |
* |
* |
Not Used |
N/A |
| 28 |
CLS07 (BN-YE) |
18 |
CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT |
8U5T-14474-CB |
| 29 |
* |
* |
Not Used |
N/A |
| 30 |
* |
* |
Not Used |
N/A |
| 31 |
* |
* |
Not Used |
N/A |
| 32 |
* |
* |
Not Used |
N/A |
| 33 |
* |
* |
Not Used |
N/A |
| 34 |
CMC19 (GY-VT) |
20 |
SWITCH - LOW LEVEL BRAKE FLUID |
8U5T-14474-BB |
| 35 |
* |
* |
Not Used |
N/A |
| 36 |
CDC55 (BN-VT) |
20 |
RELAY - RUN, START |
8U5T-14474-BB |
| 37 |
* |
* |
Not Used |
N/A |
| 38 |
CLF03 (VT-OG) |
20 |
CTRL MOD. - BEAM HIGH RIGHT |
97BG-14474-AAB |
| 39 |
CLF05 (BU-GN) |
16 |
CTRL MOD. - BEAM LOW RIGHT |
97BG-14474-ABB |
| 40 |
CLF02 (GY-BN) |
20 |
CTRL MOD. - BEAM HIGH LEFT |
97BG-14474-AAB |
| 41 |
CDC35 (BU-WH) |
22 |
SWITCH - IGNITION # START |
97BG-14474-AAB |
| 42 |
* |
* |
Not Used |
N/A |
| 43 |
* |
* |
Not Used |
N/A |
| 44 |
* |
* |
Not Used |
N/A |
| 45 |
VDN04 (VT-WH) |
20 |
CTRL MOD. - LIN BUS # BCM 4 |
8U5T-14474-BB |
| 46 |
* |
* |
Not Used |
N/A |
| 47 |
* |
* |
Not Used |
N/A |
| 48 |
* |
* |
Not Used |
N/A |
| 49 |
* |
* |
Not Used |
N/A |
| 50 |
* |
* |
Not Used |
N/A |
