Connector End View (C2280D) - BODY CONTROL MODULE (BCM)

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C2280D BODY CONTROL MODULE (BCM) 14401 part# N/A Not Available

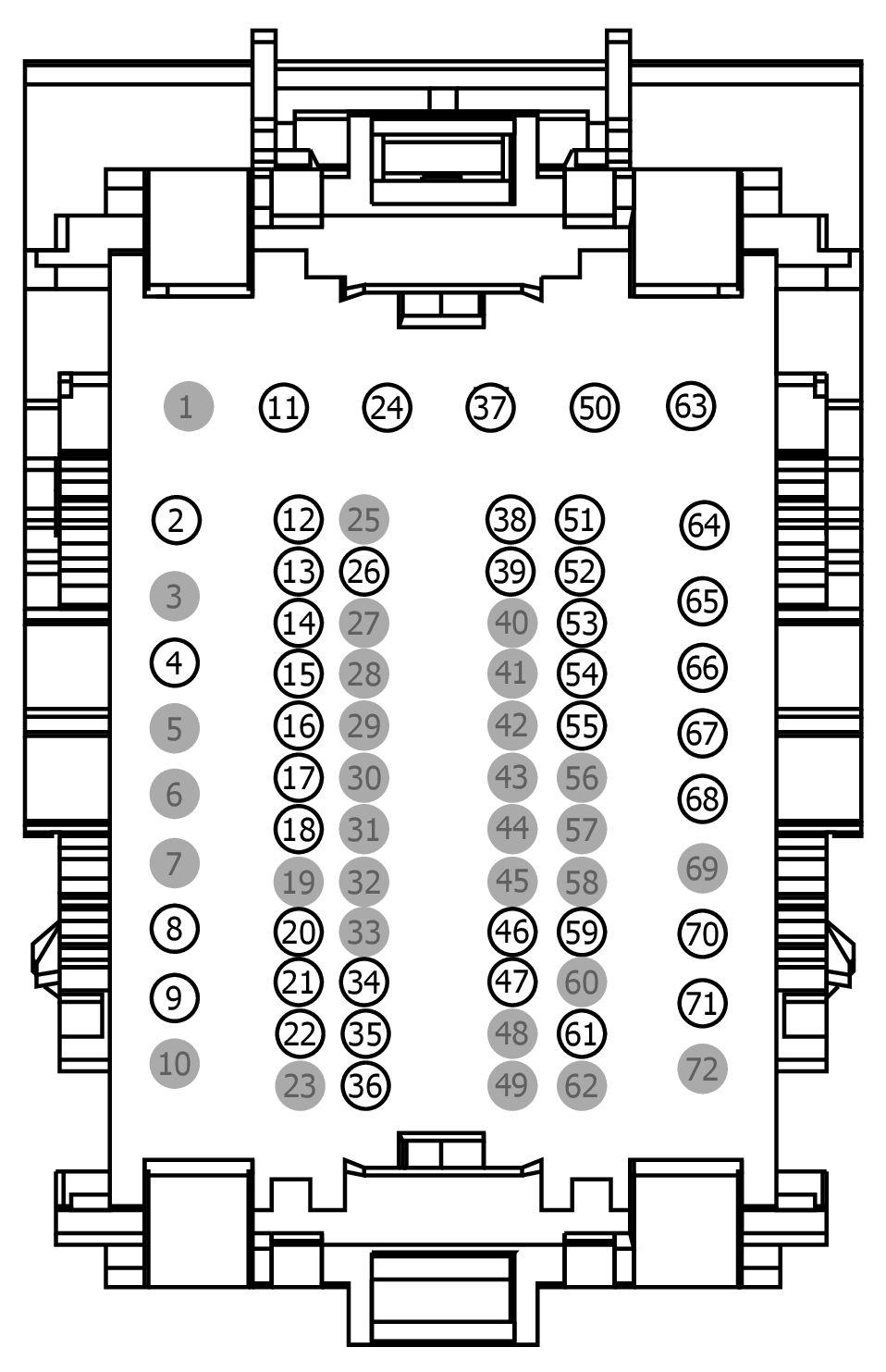

GFDWR26803Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
97BG-14474-AAB DU2Z-14474-DA 1.5
F8VB-14474-BA EU2Z-14474-AA 2.8
8U5T-14474-BB DU2Z-14474-CA 0.64
F8VB-14474-AA EU2Z-14474-AB 2.8
XF2T-14474-BA EU2Z-14474-AA 2.8
97BG-14474-ABB DU2Z-14474-DA 1.5
XF2T-14474-CA EU2Z-14474-AA 2.8
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 SBP11 (BU-RD) 22 FUSE - 11 OR CIRCUIT BREAKER 97BG-14474-AAB
3 * * Not Used N/A
4 CDC35 (BU-WH) 20 SWITCH - IGNITION # START 97BG-14474-AAB
5 * * Not Used N/A
6 * * Not Used N/A
7 * * Not Used N/A
8 CCB08 (VT-WH) 20 SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN 97BG-14474-AAB
9 VDN01 (BU-WH) 22 CTRL MOD. - LIN BUS # BCM 1 97BG-14474-AAB
10 * * Not Used N/A
11 SBP24 (VT-RD) 20 FUSE - 24 OR CIRCUIT BREAKER F8VB-14474-BA
12 CLS32 (BN-YE) 22 SWITCH - HAZARD 8U5T-14474-BB
13 CLN17 (BN) 22 SWITCH - IP/SWITCH ILLUMINATION 8U5T-14474-BB
14 VLN04 (VT-GY) 22 CTRL MOD. - IP/SWITCH ILLUMINATION 8U5T-14474-BB
15 CPL89 (BN-BU) 22 CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER 8U5T-14474-BB
16 CE436 (VT-OG) 22 CTRL MOD. - WAKE UP PCM 8U5T-14474-BB
17 CDC26 (BU-OG) 22 RELAY - STARTER INHIBIT 8U5T-14474-BB
18 CET53 (BU-OG) 22 CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK 8U5T-14474-BB
19 * * Not Used N/A
20 CPK36 (VT-BN) 22 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED push button start 8U5T-14474-BB
21 CPK34 (BU-WH) 22 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + push button start 8U5T-14474-BB
22 CDC30 (BU-GY) 22 SWITCH - IGNITION # KEY IN key in warning 8U5T-14474-BB
23 * * Not Used N/A
24 SBP04 (RD) 22 FUSE - 4 OR CIRCUIT BREAKER push button start F8VB-14474-BA
24 SBP04 (RD) 20 FUSE - 4 OR CIRCUIT BREAKER without push button start F8VB-14474-BA
24 SPB04 (RD) 18 FUSE - 4 OR CIRCUIT BREAKER key in warning XF2T-14474-CA
25 * * Not Used N/A
26 RRH02 (GN-WH) 22 CTRL MOD. - SWITCH HORN 8U5T-14474-BB
27 * * Not Used N/A
28 * * Not Used N/A
29 * * Not Used N/A
30 * * Not Used N/A
31 * * Not Used N/A
32 * * Not Used N/A
33 * * Not Used N/A
34 CDC34 (WH-OG) 20 SWITCH - IGNITION # RUN, START without push button start 8U5T-14474-BB
35 CDC33 (VT-GN) 22 SWITCH - IGNITION # RUN, ACCESSORY without push button start 8U5T-14474-BB
36 VDN12 (BU-WH) 22 CTRL MOD. - LIN BUS # PASSENGER DOOR MODULE 2 8U5T-14474-BB
37 SBP23 (WH-RD) 16 FUSE - 23 OR CIRCUIT BREAKER F8VB-14474-AA
38 CLN55 (YE-VT) 22 DIMMER - IP/SWITCH ILLUMINATION # DIM UP 8U5T-14474-BB
39 RLF14 (GY-BN) 22 SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) - 8U5T-14474-BB
40 * * Not Used N/A
41 * * Not Used N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 * * Not Used N/A
45 * * Not Used N/A
46 CLF24 (YE-BU) 22 SWITCH - HEADLAMP ON 8U5T-14474-BB
47 CLS34 (GY) 22 SWITCH - PARK LAMPS 8U5T-14474-BB
48 * * Not Used N/A
49 * * Not Used N/A
50 SBP17 (RD) 12 FUSE - 17 OR CIRCUIT BREAKER XF2T-14474-BA
51 CLN56 (BN-VT) 22 DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN 8U5T-14474-BB
52 VLF14 (BU-BN) 22 SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + 8U5T-14474-BB
53 CLS48 (BU) 22 SWITCH - FOG LAMP REAR 8U5T-14474-BB
54 CLF23 (WH-VT) 22 SWITCH - HEADLAMP OFF 8U5T-14474-BB
55 CLF21 (GY-VT) 22 SWITCH - FOG LAMPS FRONT 8U5T-14474-BB
56 * * Not Used N/A
57 * * Not Used N/A
58 * * Not Used N/A
59 CLF19 (VT-GN) 22 SWITCH - AUTOLAMP (1) ON 8U5T-14474-BB
60 * * Not Used N/A
61 CPK35 (YE-OG) 22 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + push button start 8U5T-14474-BB
62 * * Not Used N/A
63 SBP10 (YE-RD) 22 FUSE - 10 OR CIRCUIT BREAKER XF2T-14474-CA
64 SBP21 (GY-RD) 20 FUSE - 21 OR CIRCUIT BREAKER 97BG-14474-AAB
65 CBP22 (GY-RD) 22 FUSE - 22 OR CIRCUIT BREAKER 97BG-14474-AAB
66 CBP16 (BU-GN) 18 FUSE - 16 OR CIRCUIT BREAKER 97BG-14474-ABB
67 CBP15 (BN-BU) 22 FUSE - 15 OR CIRCUIT BREAKER 97BG-14474-AAB
68 CBP09 (VT-GY) 22 FUSE - 9 OR CIRCUIT BREAKER 97BG-14474-AAB
69 * * Not Used N/A
70 CBP02 (GN) 22 FUSE - 2 OR CIRCUIT BREAKER 97BG-14474-AAB
71 CBP01 (BU) 22 FUSE - 1 OR CIRCUIT BREAKER 97BG-14474-AAB
72 * * Not Used N/A
