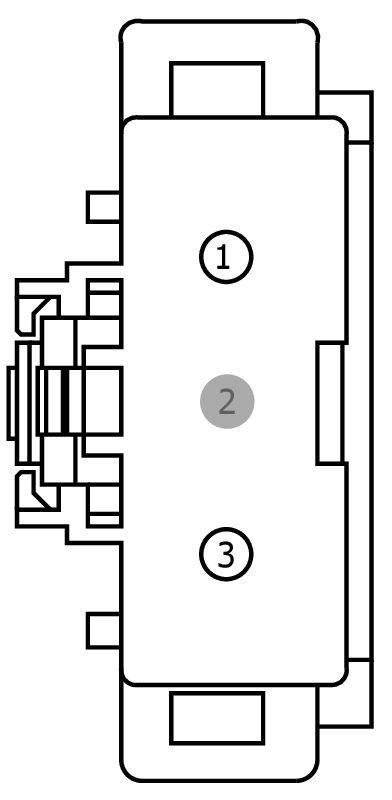

Connector End View (C2280B) - BODY CONTROL MODULE (BCM)
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2280B |
BODY CONTROL MODULE (BCM) |
12A581 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| GU5T-14474-DAA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBB32 (VT-RD) |
12 |
FUSE - 32 OR CIRCUIT BREAKER |
GU5T-14474-DAA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
CBB64 (VT-GN) |
12 |
FUSE - 64 OR CIRCUIT BREAKER |
GU5T-14474-DAA |
