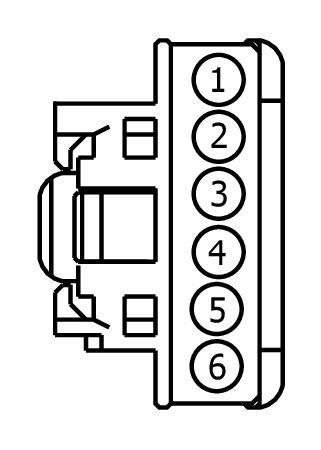

Connector End View (C2247) - IN-VEHICLE TEMPERATURE AND HUMIDITY SENSOR
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2247 |
IN-VEHICLE TEMPERATURE AND HUMIDITY SENSOR |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| FU5T-14474-LB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
RH103 (GY) |
22 |
CTRL MOD. - CLIMATE # I.T.S. ASPIRATOR MOTOR - |
FU5T-14474-LB |
| 2 |
VH414 (GN-BU) |
22 |
SENSOR - INCAR TEMP. |
FU5T-14474-LB |
| 3 |
LH111 (BN-WH) |
22 |
CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS |
FU5T-14474-LB |
| 4 |
VH413 (WH-BU) |
22 |
SENSOR - HUMIDITY |
FU5T-14474-LB |
| 5 |
RH111 (GY-BU) |
22 |
CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS |
FU5T-14474-LB |
| 6 |
CBP02 (GN) |
22 |
FUSE - 2 OR CIRCUIT BREAKER |
FU5T-14474-LB |
